Teltonika LTE Antenna QuSpot AX09S Outdoor Housing for RUT-X09

QuSpot for Teltonika RUTX09

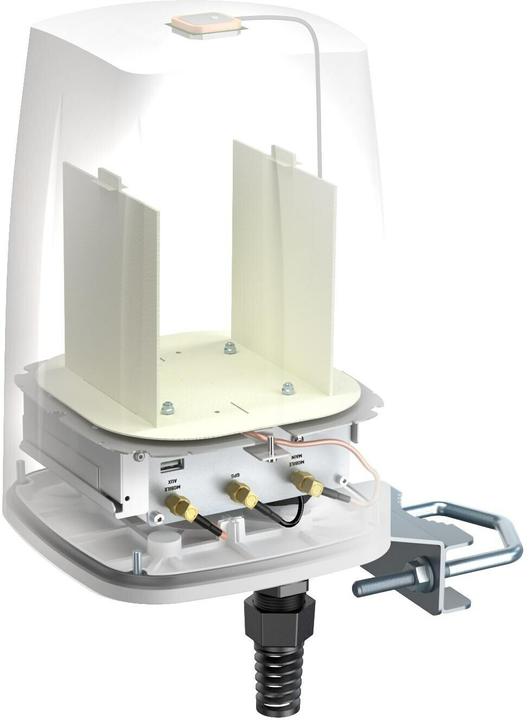

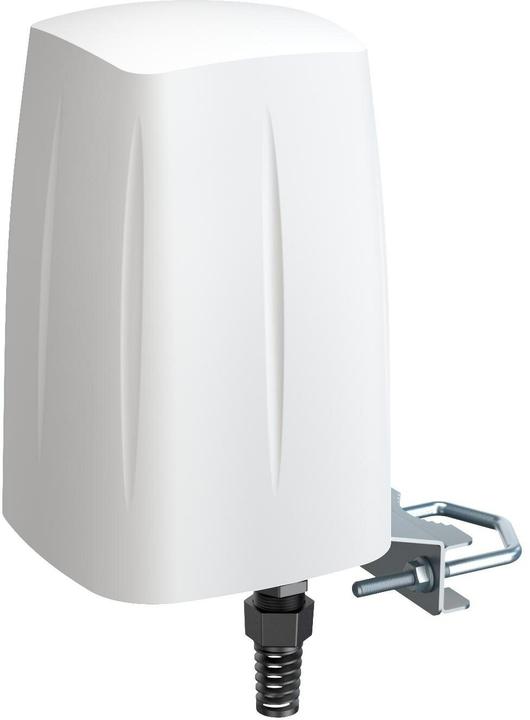

Integrated multiband LTE omni-directional outdoor antennas and GPS antenna for the Teltonika RUTX09 (All-in-One). The QuSpot omni-LTE antenna for the Teltonika RUTX09 router is a perfect outdoor device for mobile and fixed installations such as industrial applications, video surveillance, hotspots, yachts, boats, and motorhomes. It features an embedded GPS antenna. When using the RUTX09 with the QuSpot antenna, you receive an integrated complete solution with a router and multiband antennas in one housing.

LTE Specification:
Frequency: 0.694-0.96 GHz, 1.7 - 2.2 GHz, 2.2 - 2.7 GHz
Gain: 2 dBi, 2 dBi, 4 dBi
VSWR:
Beamwidth: 360°/35° +/-5°
Polarization: Vertical
Impedance: 50 Ohm

Wi-Fi Specification:
Frequency: 2.40-2.50 GHz, 4.70-6.00 GHz
Gain: 6 dBi, 7 dBi
VSWR:
Beamwidth: 360°/25° +/-5°
Polarization: Vertical
Impedance: 50 Ohm.
