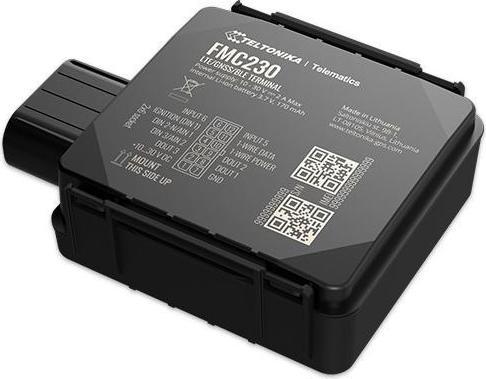

Teltonika FMC230 - Waterproof LTE Cat. 1 Terminal with Flexible Inputs Configuration

FMC230 - Waterproof LTE Cat. 1 Terminal with Flexible Input Configuration

The FMC230 is a waterproof and dustproof real-time tracking terminal with 4G (LTE Cat. 1) network coverage, including 2G (GSM) fallback compatibility. It is equipped with internal GNSS and LTE antennas, configurable digital, analog, negative, and pulse inputs, three DOUT outputs, Bluetooth connectivity, and a backup battery. The device features an integrated capability to activate the pulse input for precise readings from the fuel flow meter. Pulse-based monitoring of fuel consumption is much more accurate than other types of fuel measurement sensors, making the FMC230 an ideal solution for fuel-intensive machines such as cranes, construction vehicles, mining equipment, and agricultural machinery. Additionally, the FMC230 has an IP67 certified housing that provides complete protection against dust and water at a depth of up to 1 meter for at least 30 minutes. Therefore, the FMC230 can be used in agriculture, construction, mining, or any other fleet where harsh monitoring conditions prevail.

Module

Name: FMC230- MBIB0: MeiG SLM320-E with Teltonika TM2500; FMC230- MCIB0: MeiG SLM320-LA with Teltonika TM2500 Technology: LTE (Cat. 1)/2G (GSM/GPRS)/GNSS/Bluetooth GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS Receiver: Tracking: 33 Tracking Sensitivity: -165 dBm Position Accuracy: < 2.5 CEP Speed Accuracy: < 0.1 m/s (within +/- 15% error) Hot Start: < 1 s Warm Start: < 25 s Cold Start: < 35 s Mobile Network

Technology: LTE Cat. 1, GSM 2G Bands: FMC230-MBIB0: GSM: B2/B3/B5/B8; FMC230-MCIB0: GSM: B2/B3/B5/B8 4G Bands: FMC230-MBIB0: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B38/B40/B41; FMC230-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:...
