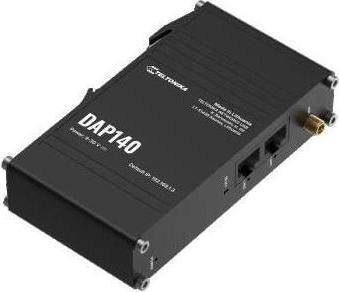

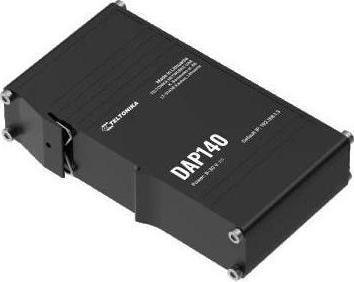

Teltonika DAP140 - Industrial wireless access point, seamless Wi-Fi 4, 2 x 10/100 RJ45

Industrial Wireless Access Point

The DAP140 is an industrial wireless access point from Teltonika with a passive PoE input that enhances Wi-Fi coverage and performance in industrial environments. Equipped with Wi-Fi 4, Wi-Fi Mesh, and Fast Roaming, as well as two RJ45 ports and support for up to 50 simultaneous connections, this wireless access point is essential for maintaining a reliable connection. An integrated DIN rail mount, a 3-pin power connector, and an industrial-grade aluminum housing make the DAP140 the ideal access point for industrial applications.

Wireless

• Wireless Mode: IEEE 802.11b/g/n (Wi-Fi 4), Access Point (AP), Client (STA), Mesh (802.11s), Multi AP
• Wi-Fi Security: WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-EAP, OWE, WPA2-EAP, WPA3-EAP
• SSID/ESSID: SSID stealth mode and access control based on MAC address
• Wi-Fi Users: Up to 50 simultaneous connections
• Wireless Mesh/Roaming: Fast Roaming (802.11r), Radio Resource Measurement (802.11k), BSS Transition Management (802.11v), Client Isolation, SSID hiding, WMM
• Wireless MAC Filter: Allowlist, Blocklist
• Wireless QR Code Generator: Once scanned, a user automatically joins your network without entering credentials
• TravelMate: Redirects the Wi-Fi hotspot landing page to a subsequently connected device

Ethernet

• LAN: 2 x LAN ports, 10/100 Mbps, compliant with IEEE 802.3, IEEE 802.3u, 802.3az, supports Auto-MDI/MDIX crossover

Network

• Routing: Static routing, dynamic routing (RIP, OSPF, EIGRP, BGP, NHRP), policy-based routing, routing rules
• Network Protocols: TCP, UDP, IPv4, IPv6, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake On LAN (WOL)
• VoIP Passthrough Support: H.323 and...
