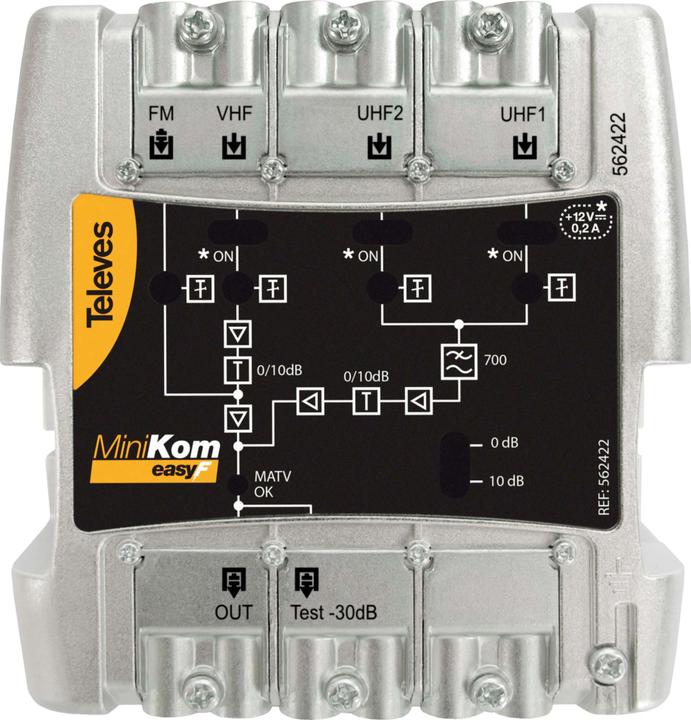

Televes MVNF440DD2

MiniKom EasyF Multi-Range Amplifier 4 Inputs: FM-VHF-UHF-UHF

Configurable multi-range amplifier for MATV systems with separate amplification without intermodulation between inputs.

Equipped with 4 inputs: FM-VHF-UHF-UHF.

Features an LTE700 filter and an LED signal indicator for immediate detection of network disturbances.

Highlights

• New compact design (103 mm x 103 mm x 50 mm)
• LED display for signal and remote powering
• Switchable gain (high/low) and high output level
• Two gain stages for the TV band
• Very low power consumption due to efficient switch-mode power supply
• EasyF connection technology
• Good shielding properties due to the cast housing

Features

• Test output (-30 dB)
• Explanatory product labels with circuit diagram and adjustment aids
• ON/OFF switch for DC pass-through on VHF and UHF inputs for remote powering of mast amplifiers or terrestrial antennas with integrated BOSS amplifiers.
• Wall mounting possible

Good to know
EasyF connection system: Simple and fast

EasyF is an innovative connection concept where the inner conductor of the coaxial cable is directly inserted into the device, improving connection reliability. Without F-connectors, the chassis can be reduced, and the connection of two cables can be secured with a single screw.

• Time savings: Quick installation is possible as there is no need to attach a connector to the coaxial cables first. Additionally, the connections do not need to be screwed onto the device, which can sometimes be difficult in tight spaces.
• Connection reliability: The clamp that holds the cables prevents the coaxial cable from coming loose.
• Cost savings: No additional connectors required (neither F nor IEC).
• Space optimization: Inputs and outputs are located...
