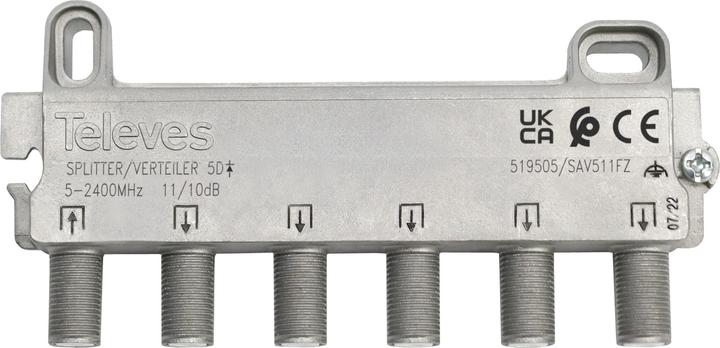

5-way F-splitter 5...2400 MHz 11/10 dB

The 5-way splitter with F connectors is designed for SMATV installations. Due to the smaller electronic components, it has low insertion losses, which improves its electrical performance. Additionally, its Zamak housing provides good shielding.

It is suitable for indoor installation and can be mounted on walls, on mounting plates with nuts at the connections, or on a standard DIN rail.

Highlights

• Flexibility in installation: can be screwed to the wall, mounted on plates with nuts at the connections, or installed on a standard DIN rail (with adapter).

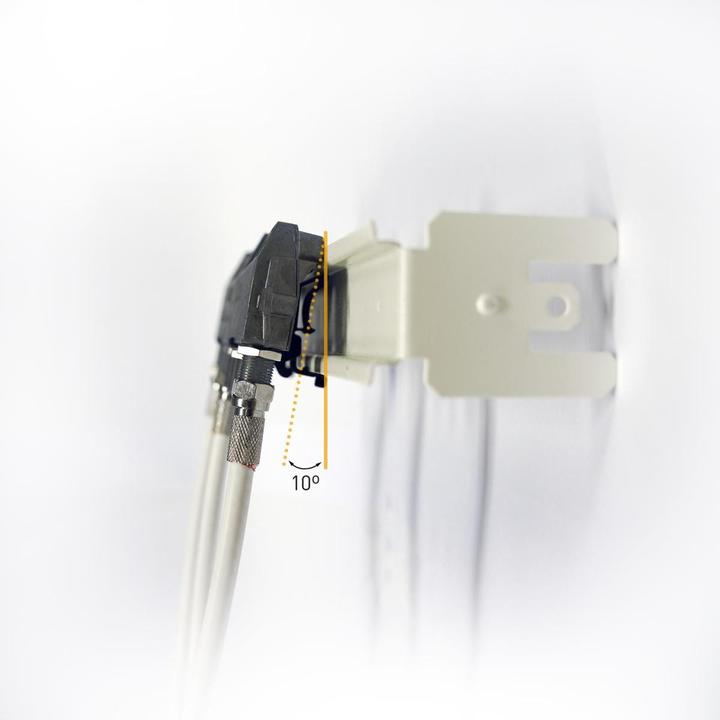

• Convenient cable connection thanks to a 10º angle of the F connectors towards the installation wall.
• Space optimization in enclosures and cabinets: the inputs and outputs are always on the same side.
• Better organization of the installation: allows cabling to be routed from the back.

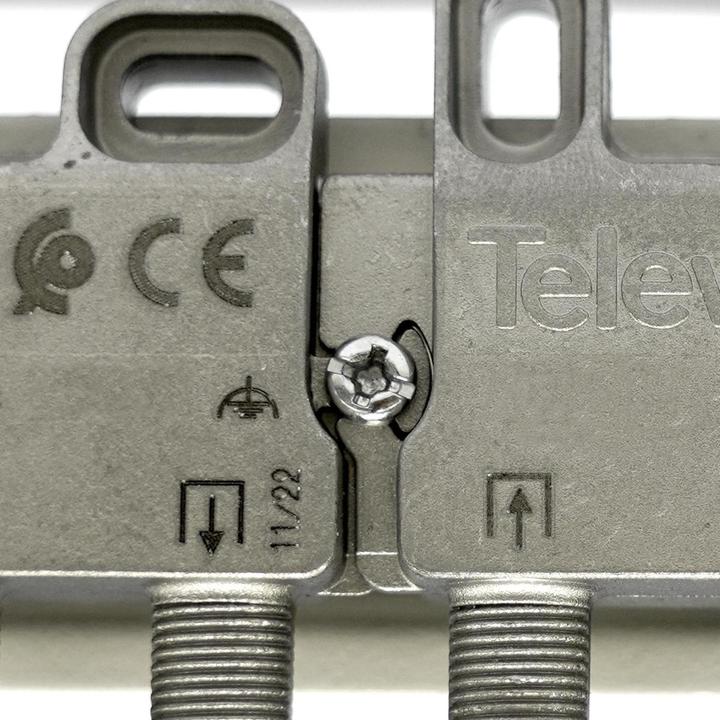

• The elements of the F series can be connected to the grounding screw, requiring only a single grounding cable.
• The signal level is maintained at the outlets even with long cables, thanks to improved flatness response.
• Excellent reliability: robotic manufacturing with next-generation microcomponents.
• 100% European design, quality, and manufacturing.

Features

• Low insertion losses.
• Good shielding (Class A), made of Zamak.
• F connectors with longer threads to facilitate and secure installation on a mounting plate.
• Indoor installation.
• Includes grounding screw.
• DC pass from outputs to input.
