Televes Connection cable 5.0m FS-FSW 2050

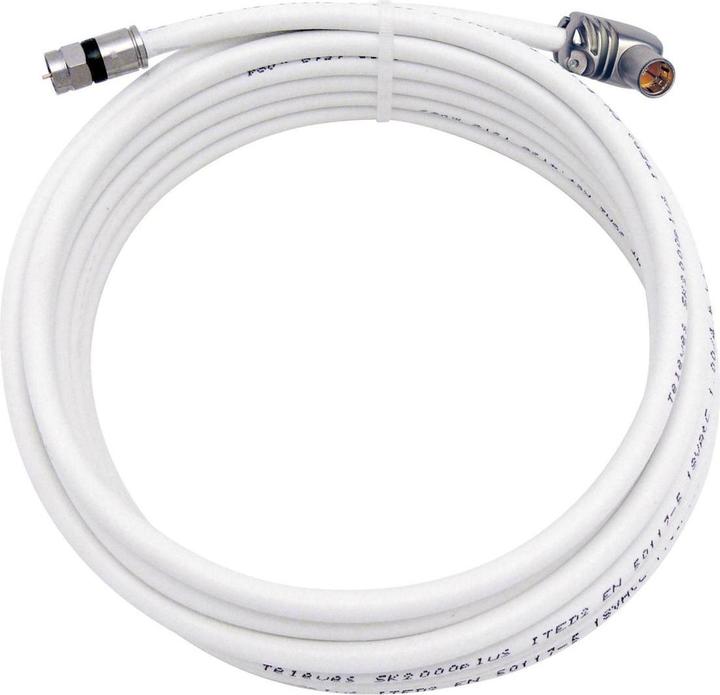

Receiver connection cable with F compression connector (Ref. 3802) and an F quick-angle connector (Ref. 413410) at the ends. High-quality cable SK2000plus (Ref. 4138xx), triple-shielded, Class A++. For connecting between antenna socket and receiver, TV set, or radio. Packaged in a polybag with a hanger.

Highlights

• Full copper inner conductor
• Triple-shielded, Class A+. EU fire protection class Eca
• PROEasyF angle connector, Class A+

Features

• Color: White, PVC jacket
• Available in various lengths

Good to know

Triple-shielded Class A++ coaxial cables

Due to the triple shielding, these cables offer the highest protection against interference radiation, such as that caused by LTE/4G signals.

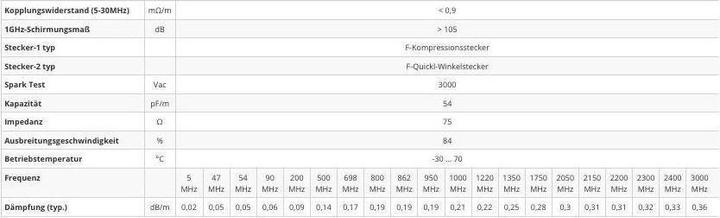

Meet the shielding class A++ according to EN 50117:

• At 5 MHz - 30 MHz: TI < 0.9 mΩ/m
• At 30 MHz - 1000 MHz: SA > 105 dB
• At 1000 MHz - 2000 MHz: SA > 95 dB
• At 2000 MHz - 3000 MHz: SA > 85 dB

The transfer impedance determines how effective the shielding is at low frequencies, and the shielding attenuation is defined in the frequency range of 30 MHz to 3000 MHz.
