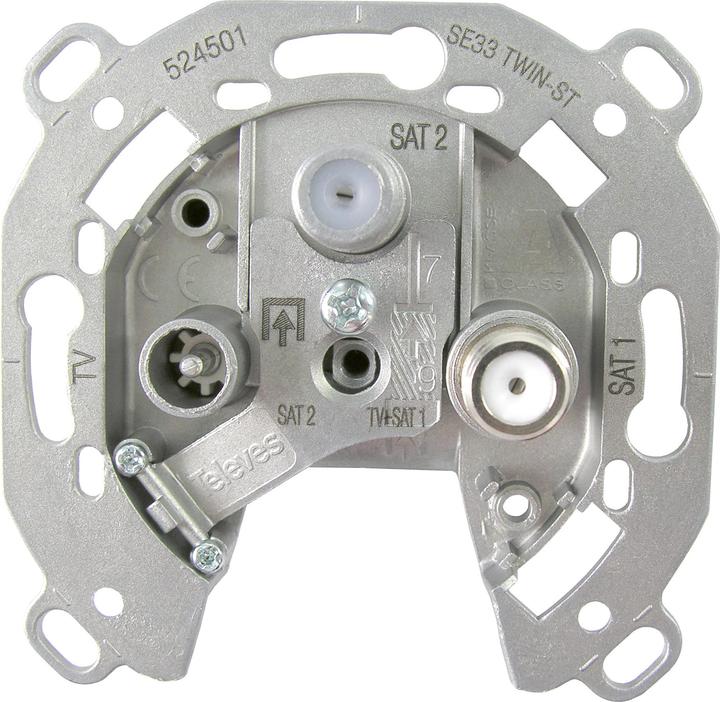

Televes Antenna socket SE 33TWIN-ST SINGLE 3-hole with DC outlet (SE33TWIN-ST)

Branch outlet box with 3 connections: FM/TV-SAT1-SAT2

This branch outlet box features three connections and two inputs. It is equipped with two F-connectors: SAT1 for the satellite signal corresponding to input 1 (filtered) and SAT2 for the satellite signal corresponding to input 2 (full bandwidth 5-2400 MHz). The IEC connector is intended for radio (FM) and DVB-T/T2 from input 1. The lower part of the housing frame is open.

Highlights

• Built-in separation filter: The SAT signal is filtered in the FM/TV-IEC connection, while the terrestrial FM/TV signal is filtered in the satellite connection (SAT1).
• Robot-controlled automated manufacturing
• High shielding
• Excellent decoupling between outputs

Features

• Die-cast housing
• DC pass from the SAT connection to the input
• Compatible with coaxial cables with outer diameters ranging from 5 to 6.9 mm (Ø 5...6.9 mm)

Good to know

Televes antenna sockets with plug technology. Advantages of Class A antenna sockets:

• The inner conductor is easily connected by pressing, without the need for screws. Inner conductors are repeatedly detachable.
• Usable for inner conductor diameters from 0.65 mm to 1.2 mm and external cable diameters from 5 mm to 6.9 mm.
• Conical F-connector for easy insertion of the inner conductor.
• Specially fixed claws to simplify installation (strong, stable, and long). Very low installation depth.
• Lockable hinged clamp remains in position even when mounted horizontally.
• The clamp is equipped with 3 serrated rows in 9 mm for perfect fastening of the braid.
• Third keyhole for better fixation.
• Smoothly rounded edges to prevent injuries.
• Meets shielding class A.

Additionally, this product range includes helpful markings on the housing:

• CE marking
• Numerical and logical designation of the antenna socket type
• Representation of inputs and outputs
• Dimension indications.
