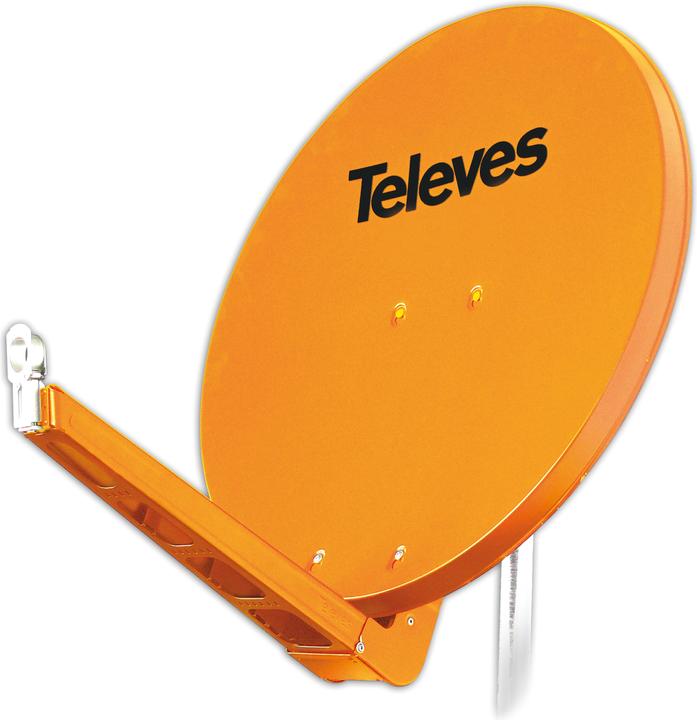

Televes Aluminium reflector 75x85cm orange QSD 75-O

QSD75 Aluminum Satellite Reflector

The benchmark in satellite reception. The 75 cm x 85 cm aluminum satellite reflector from the QSD series impresses with premium quality signal reception. The fully pre-assembled back panel and the directly attached foldable feed arm ensure maximum functionality during installation.

Of course, the offset reflectors are excellently protected against all weather conditions and offer excellent corrosion and rust protection, resulting in a very long lifespan.

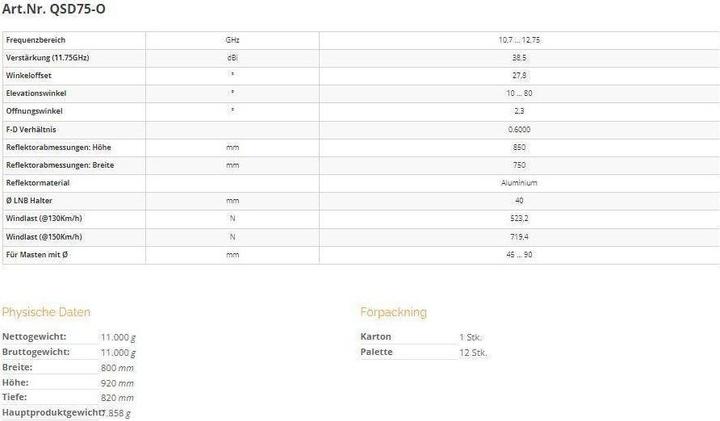

Product Data

• Item No.: QSD75-O
• Color: Orange
• Delivery Method: Individual Packaging
• Ref. No.: 7902
• EAN13: 8424450144442

Highlights

• Aluminum satellite reflector (1.5 mm) with die-cast feed holder
• Easiest assembly thanks to the foldable feed arm
• Pre-assembled back panel
• Very stable design
• Galvanized mast mount, powder-coated, and painted in reflector color
• Integrated cable management in the feed arm (no plastic)
• Stainless steel screws (Inox)
• TÜV certified

Features

• The aluminum reflector, galvanized and painted mast mount, and rust-free screws ensure a long lifespan
• The robust back panel provides very high stability
• Dimensions, design, and execution manufactured with maximum precision
• Very short assembly time, thanks to the pre-assembled back panel with foldable feed arm
• The integrated cable management in the feed arm simplifies cable routing
• Multi-feed option (4 satellites), up to 20º
• Reflector with Televes logo

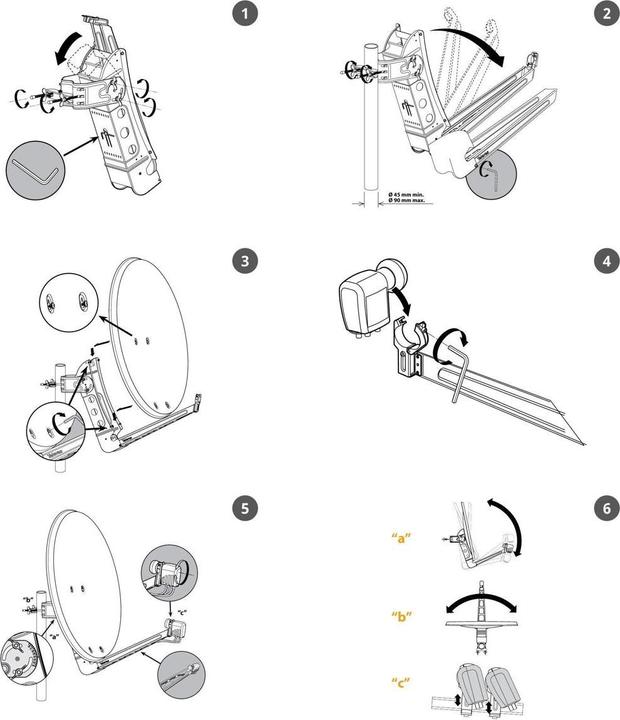

Installation Instructions
Very short assembly time, thanks to the pre-assembled back panel with foldable feed arm - in less than 5 steps.
