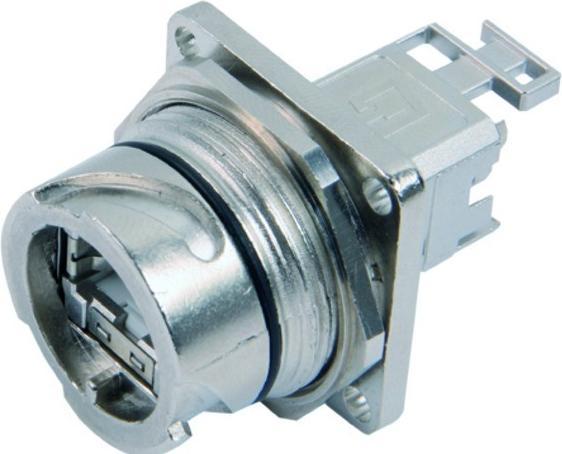

Telegärtner STX V1 flange set

Telegärtner STX V1 Flange set 100007414 Manufacturer :Telegärtner Designation :STX V1 Flange set RJ45 Jack Cat.6 M Type :100007414 Version :Jack Connector type :RJ45 8(8) Shielded :yes Category :6A (IEC) Connection type :other Special tools required :yes Suitable for round cables :yes Suitable for flat cables :no Suitable for stranded conductors :yes Suitable for solid conductors :yes Colour :other Telegärtner STX V1 flange set 100007414: further details Features: Accepts cables with a diameter of 5...10 mm, Easy mounting of the flanges with central screw connection or 4 screws, NBR catch cord on the protective cap, Field for marking labels, Available with bend protection spiralbending radii for fibre optic and copper cables, Robust die-cast zinc or plastic housing, Protection class IP67, Variant 1 in accordance with IEC 61076-3-106, Pre-assembled plugs and set items for easy installation, Optionally with RJ45 Cat.6A (ISO/IEC), Cat.6 Class EA (ISO/IEC), USB or fibre optic insert available Fire protection class: Not relevant Flammable dripping: Not relevant Smoke development: Not relevant Acid development: Not relevant Designation: STX V1 flange set Insert: RJ45 module A Cat.6A (ISO/IEC) Housing: Metal Installation dimension: Z124 Z125 , EAN: 4018359328696.
