TechniSat Multytenne

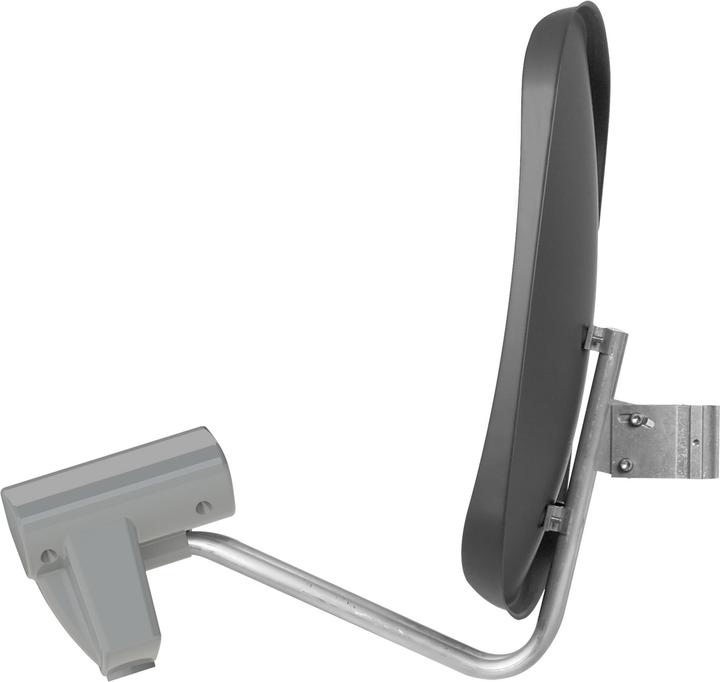

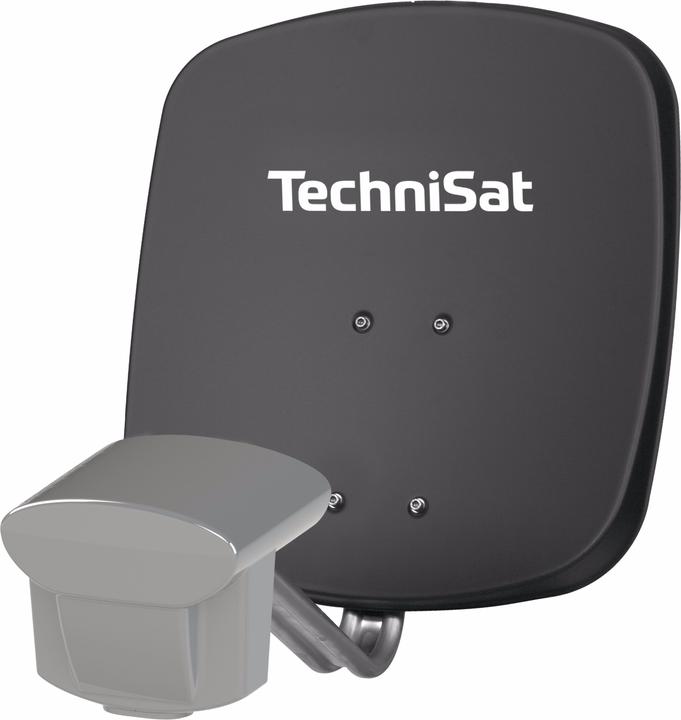

The Multytenne QuattroSat can be connected directly to a digital satellite receiver without complicated multi-switch technology and receives all digital programs from four satellite systems in parallel. With a diameter of only 45 cm, the Multytenne QuattroSat is extremely compact and wonderfully suited for discreet installation on balconies, house roofs, garages and in gardens. It is ideal for rental apartments and apartment buildings where a satellite antenna cannot normally be installed due to lack of space, and is available for both single and two-satellite reception.

The patented Multytenne QuattroSat receiver unit allows reception from four different orbit positions. Once aligned to the Astra 19.2° East position, the Multytenne QuattroSat also receives TV and radio programs from the Eutelsat 13° East, Astra 23.5° East and Astra 28.2° East positions in parallel to the channels of this satellite system. Without the use of a rotary engine and in excellent quality. (Via the latter orbital position, it is even possible to receive the programs of the English BBC in western Germany).

The powerful Multytenne QuattroSat reception unit includes four first-class universal LNBs, controlled via DiSEqC switches. Therefore, only one coaxial cable is required as a connection to the digital satellite receiver. The Multytenne QuattroSat works with any digital satellite receiver that can handle DiSEqC 1.0. For mounting on a mast or pipe, you need the TechniSat An-Rohr fitting, which is fastened around the mast (30-63 mm) with a clamp (not included). Included in delivery: DigitalSat antenna SATMAN 45, Multytenne QuattroSat reception unit (LNB), AZ/EL bracket, wall mount, screws, tools, installation instructions. The reception characteristics of the system are excellent. However, it must be remembered that the signal quality ultimately depends on the transmission power of the selected transponder on the targeted satellite.
