TCS Knob cylinder:pack with electronic 817-003-3555

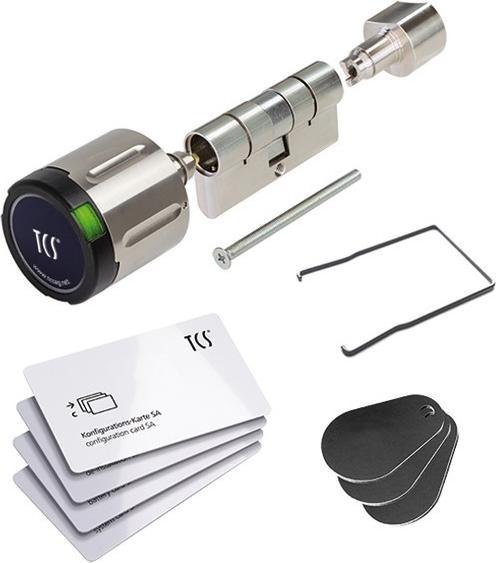

The electronic knob cylinder from TCS, model 817-003-3555, is an innovative solution for modern access control systems. This locking cylinder is designed according to the standards DIN 18252 and DIN EN 1303, offering high security for various applications, including fire doors. The cylinder is suitable for use in PZ locks and does not require mounting holes, significantly simplifying installation. With an IP56 protection rating, it is also suitable for use in protected outdoor areas. The cylinder allows for the management of up to 96 keys, which are identified by a passive transponder, ensuring flexible and user-friendly handling. Power is supplied by two CR2 lithium batteries, which can be replaced while the unit is installed, without the need to disassemble the cylinder. The optical and acoustic user guidance ensures intuitive operation.

• Easy installation by snapping the knob module into the cylinder
• Battery replacement possible while installed
• Identification via passive transponder without power supply
• Optical and acoustic user guidance for simple operation
• Suitable for applications in protected outdoor areas with IP56 protection rating.
