Product details

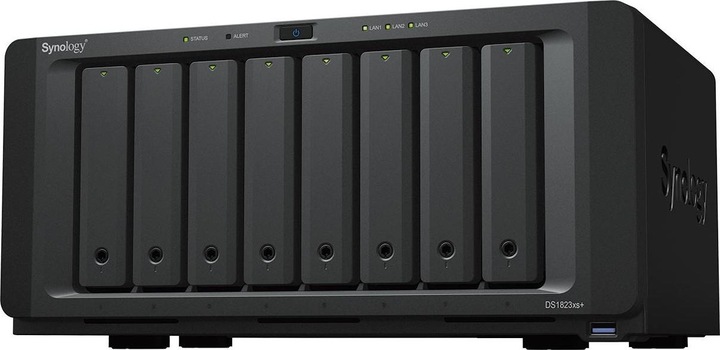

The DS1823xs+ is a powerful central storage server that can be easily deployed anywhere for shared storage and data access, endpoint and server backups, VM storage, surveillance management, and other business applications. It is perfect for environments where there is no dedicated server rack or data center available.
Max. number of hard disks | 8 |
Memory | 8 GB |
NAS HDD assembly | NAS Empty Enclosure |
Total storage capacity | 0 TB |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Network connections | RJ45 Gigabit Ethernet (4x) |
Exact USB ports | USB-A 3.0 (3x) |
Documents | |
Item number | 24426956 |
Manufacturer | Synology |
Category | NAS |
Manufacturer no. | DS1823XS+ |
Release date | 6.3.2023 |
Sales rank in Category NAS | 19 of 466 |
External links | |
May include power adapter | No |
Colour | Black |
Exact colour description | Black |
NAS HDD assembly | NAS Empty Enclosure |
Model | Desktop |
Max. number of hard disks | 8 |
Hard drive form factor | 2.5", 3.5", M.2 2242 |
RAID configuration | 0, 1, 10, 5, 6, JBOD |
Memory type | DDR4-RAM |
Memory | 8 GB |
Maximum possible memory | 32 GB |
Data storage configuration | 0 TB |
Total storage capacity | 0 TB |
Hard disk additional functions | Hot swapping |
Processor type | AMD Ryzen Embedded V1780B |
Clock frequency | 3.35 GHz |
Max. turbo clock rate | 3.60 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 Gigabit Ethernet (4x) |
Connectivity | Ethernet |
USB ports | USB-A |
Exact USB ports | USB-A 3.0 (3x) |
Video connections | eSATA |
Internal connection options | M.2 (2x), PCI Express x8 (1x) |
Number of camera licenses included | 2 x |
Power consumption | 87.93 W |
Number of fans | 2 x |
Fan diameter | 120 mm |
Redundant power supply unit | No |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x AC cable, 1x DS1823xs+, 1x LAN (RJ-45) cable, 1x quick installation guide |
Length | 24.30 cm |
Width | 34.30 cm |
Height | 16.60 cm |
Weight | 6.20 kg |
Length | 50.10 cm |
Width | 44.80 cm |
Height | 40.40 cm |
Weight | 7.53 kg |
