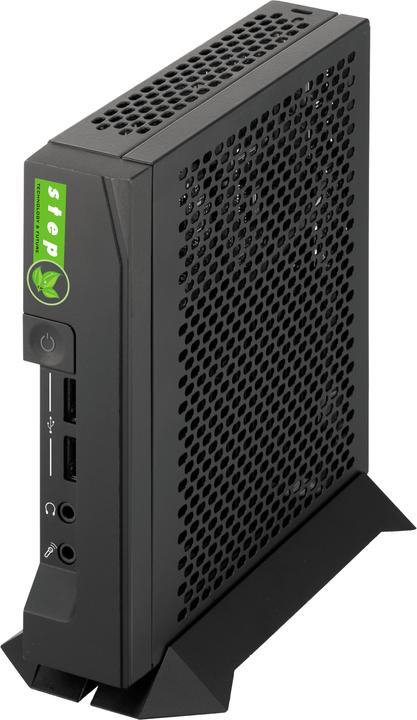

Step Micro DS190P - 1.50 GHz - Intel® Celeron® - J4105 - 4 GB - DDR4 SDRAM - 128 GB

Intel Celeron J4105, 4 GB, 128 GB, UHD Graphics 600
Ratings
Delivered between Tue, 17.6. and Sat, 28.6.
Only 1 item in stock at supplier

Product details

Step Micro Series
The Micro systems from the step Digital Signage series are capable of driving up to three displays per system. Current chipset generations offer availability and planning reliability of up to three years. Despite their small size, nearly all systems can be expanded with mini PCI Express interface cards featuring Wireless LAN, Bluetooth, and TV tuner cards.

Key specifications

PC type
Mini PC
Processor family
Celeron
Graphics card model
UHD Graphics 600
Video connections
DisplayPort (2x)
Exact USB ports
USB-A 2.0 (4x)
Network connections
RJ45 (2x)
Item number
15710562

General information

Manufacturer
Step
Category
PC
Manufacturer no.
1064124
Release date
21.4.2021

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
Mini PC

Operating system

Operating system
No operating system
Operating system architecture
64-bit

Processor

Number of processors
1 x
Processor family
Celeron
Processor type
Intel Celeron J4105
Clock frequency
1.50 GHz
Max. turbo clock rate
2.50 GHz
Max. TDP
10 W
Number of processor cores
4 -Core
Number of threads
4
Cache
4 MB
Socket
BGA 1090

Processor cooling properties

Processor cooling type
Air cooled

Memory

Memory
4 GB
Memory configuration
1 x 4GB
Max. supported memory
16 GB
Memory type
DDR4-RAM
RAM speed
2400 MHz
Set clock frequency
2400 MHz
Memory form factor
SO-DIMM
Number of memory slots
1
Number of free memory slots
1

Data storage controller

Internal connection options
PCI Express x2, PCI Express x4 (1x)

Data storage overview

Disk type
SSD
Total capacity
128 GB
Form factor
M.2, SATA

SSD properties

SSD capacity
128 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
128 GB

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
UHD Graphics 600

Dedicated graphics card properties

Graphics chip (GPU)
Intel UHD Graphics
Graphics card model
UHD Graphics 600
Hardware interface
PCI Express 3.0

Network

Ethernet controller
Ethernet LAN
Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
Wi-Fi

PC case properties

Form factor
Small Form

Connections

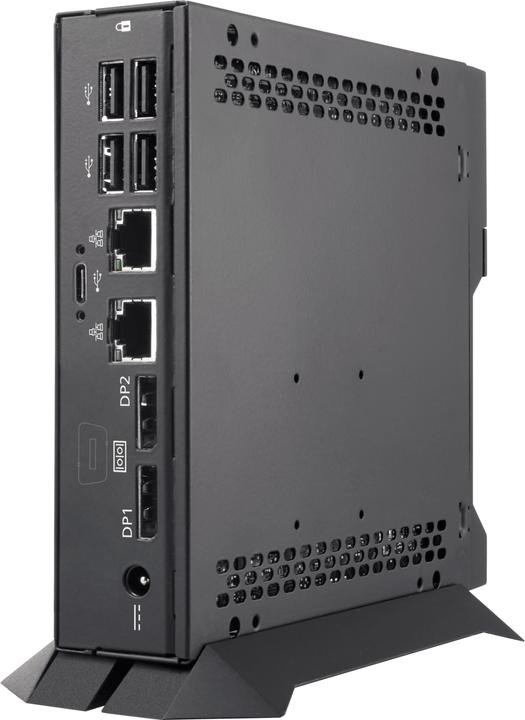

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x)
Video connections
DisplayPort (2x)
Network connections
RJ45 (2x)
Audio Connections
Jack 3.5mm In (1x), Jack 3.5mm Out (1x)
Data ports
PS/2 (4x)

Expansion slots

Expansion slot
PCI Express x1 (2x), PCI Express x1 (4x), PCI Express x2 (1x), PCI Express x4 (1x)

Optical drive properties

Optical drive type
No drive

Power supply properties

80 PLUS certificate
Platinum

Voluntary climate contribution

CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
