Steinel PD IR 4360-8 KNX - A

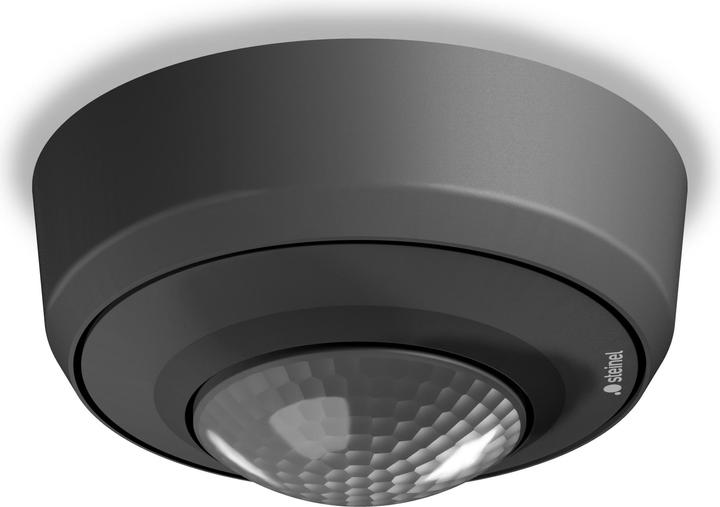

Steinel motion and presence detector PDIR4360-8KNX-APsw

Manufacturer: Steinel
Designation: Motion and presence detector AP, KNX, black
Type: PDIR4360-8KNX-APsw

Presence detector surface-mounted, KNX, black
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Surface-mounted
Material: Plastic
Material quality: Other
Colour: Black
Transparent: No
With bus coupling: Yes
Extension unit input: No
Operating mode switch: No
Optimum mounting height: 2.8 m
Max. range to one side: 4 m
Max. frontal range: 4 m
Detection field diameter on floor: 4.5 m
Horizontal detection angle: 360°
Number of channels: 2
Min. depth of appliance box: 0 mm

Steinel motion and presence detector PDIR4360-8KNX-APsw: more details
Motion detection, presence detection, and light measurement for offices, meeting rooms, passageways, etc. The 360° IR presence detectors in accordance with sensNORM are ideal for sensor-based standard requirements in commercial buildings. With COM1, KNX, and DALI-2 IPD interface. With KNX with 2 light outputs including constant light control, logic gate, and other outputs and functions such as day/night switching and sabotage protection. Range for motion detection: Ø 8 or Ø 24 m. Presence detector function with Ø 6 or Ø 7.5 m detection range. Colour-matching, plug-in cover caps included. For flush-mounted, surface-mounted, and ceiling installation. Setting and operation via KNX bus and ETS. Programming mode can be activated from a distance with Smart Remote remote control via app. Easy to install thanks to magnetic mounting bracket. LED feedback for safe commissioning. Installation height max. 4 m. Parallel connection (up to 10 sensors). Current consumption of 15mA at 24V. Available in black or white. EAN: 4007841086169.
