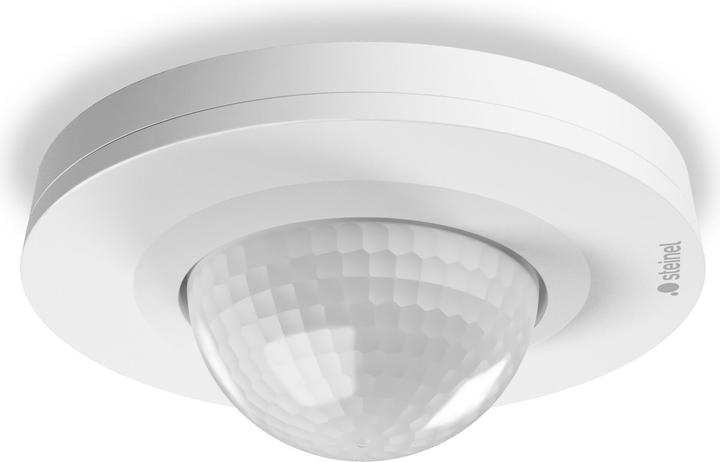

Steinel PD IR 4360-24 KNX flush-mounted WS 086152Presence detector 086152

Steinel IR presence detector PD IR 4360-24. Manufacturer: Steinel. Designation: IR presence detector flush-mounted. Type: PD IR 4360-24. Bus system KNX: yes. Bus system KNX radio: no. Bus system radio bus: no. Bus system LON: no. Bus system Powernet: no. Other bus systems: without radio. Bidirectional: no. Mounting type: flush-mounted. Material: plastic. Material quality: other. Colour: white. Transparent: no. With bus coupling: yes. Extension unit input: no. Operating mode switch: no. Optimum mounting height: 2.8 m. Max. range to one side: 12 m. Max. frontal range: 12 m. Detection field diameter on floor: 5.5 m. Horizontal detection angle: 360 degrees. Number of channels: 2. Min. depth of appliance box: 30 mm.

Steinel IR presence detector PD IR 4360-24: more details. Motion detection, presence detection, and light measurement for offices, meeting rooms, passageways, etc. The 360-degree IR presence detectors in accordance with sensNORM are ideal for sensor-based standard requirements in the property sector. With COM1, KNX, and DALI-2 IPD interface. With KNX with 2 light outputs including constant light control, logic gate, and other outputs and functions such as day/night switching and sabot protection. Range for motion detection: 8 m or 24 m. Presence detector function with 6 m or 7.5 m detection range. Colour-matching, plug-in cover caps included. For flush-mounted, surface-mounted, and ceiling installation. Setting and operation via KNX bus and ETS. Programming mode can be activated from a distance with Smart Remote remote control via app. Easy to install thanks to magnetic mounting bracket. LED feedback for safe commissioning. Installation height max. 4 m. Current consumption of 15 mA at 24V. Available in black or white. EAN: 4007841086152.
