Name: Motion detector bus KNX AP ws 0-360° 079642
Brand: Steinel
SKU: 33728449
Price: 169 CHF
Availability: InStock

isSSR

lazyLoadRecommender

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Zurich

Lausanne

Basel

Kriens

Winterthur

Bern

Dietikon

Geneva

Wohlen

St. Gallen

Steinel

Steinel presence detector IS 3360-E DE WS KNX

Manufacturer: Steinel
Designation: Presence detector KNX
Type: IS 3360-E DE WS KNX
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without
Radio bidirectional: No
Version: Motion detector
Mounting type: Other
Material: Plastic
Material quality: Thermoplastic
Surface protection: Other
Colour: White
RAL number (similar): 9003
Transparent: No
With bus coupling: Yes
Extension input: Yes
Creep protection/back field monitoring: Yes
Operating mode switch: Yes
Animal track: No
Staircase monitoring: No
Response brightness adjustable: Yes
Teach function for response brightness: Yes
Self-learning switch-off delay: No
Optimum mounting height: 2.8 m
Max. reach to one side: 20 m
Range to one side: 20 m
Max. range frontal: 20 m
Detection field diameter on floor: 8 m
Detection angle vertical: 180°
Detection angle horizontal: 360°
Number of channels: 4
Min. duty cycle: 0 s
Max. duty cycle: 1092 min

Steinel presence detector IS 3360-E EN WS KNX: more details
Higher, further, faster! Infrared motion detector IS 3360 for outdoors and indoors, ideal for monitoring high rooms and large areas such as multi-storey car parks and underground garages, up to 4 m mounting height, 360° angle of detection, max. range 20 m (tangential). Available in round and square surface-mounted, flush-mounted, and ceiling-recessed versions.
EAN: 4007841079642.

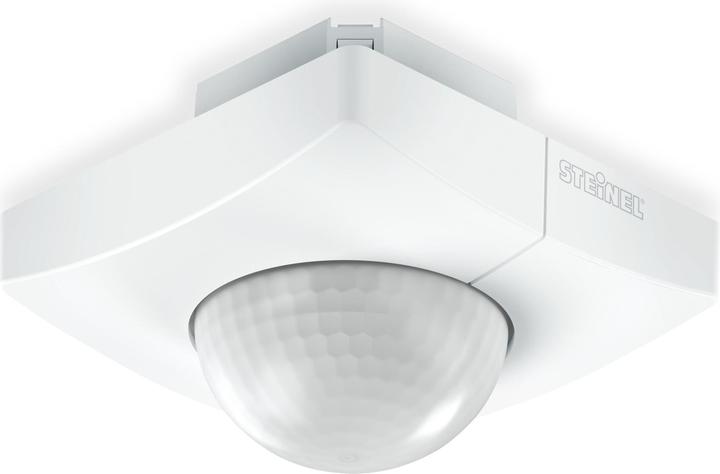

Actual product image Steinel Motion detector bus KNX AP ws 0-360° 079642 (20 m)
