Steinel Is 240 Duo

Steinel Infrared Wall Sensor IS 240 Duo

Infrared wall sensor, white

Suitable for outdoor and indoor use

Switching capacity of up to 1000 W

240° detection range with a 180° opening angle

Range of up to 12 m

Wall or corner mounting

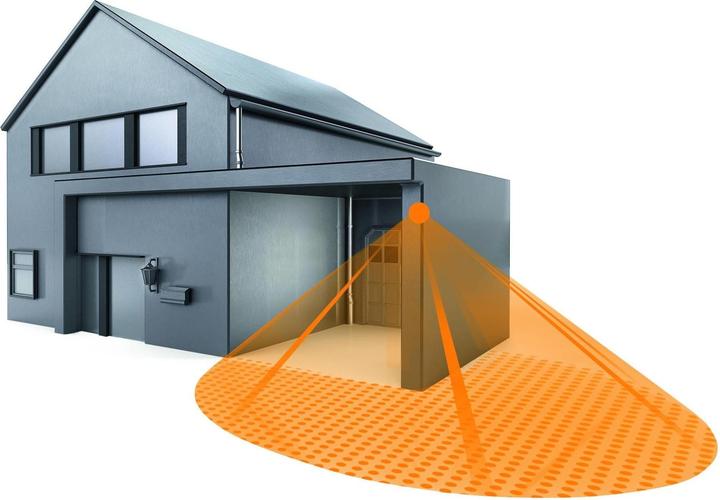

The Infrared Wall Sensor IS 240 Duo offers an optimal solution for monitoring large house fronts and outdoor corners with its 240° detection angle. Thanks to its two infrared detectors arranged at a special angle to each other, it can seamlessly monitor areas of up to 230 m². When mounted on outdoor corners, its wide detection angle allows it to cover a particularly large area, eliminating the need for a second sensor.

Easy installation

You can adjust the detection area as needed with the included cover caps. The individual settings for time and twilight threshold can be easily made using an accessible rotary knob. With its generous, clearly laid out connection space, you can quickly and easily install the IS 240 Duo on a wall or at a building corner. The supply line can be surface-mounted or flush-mounted.

Further information

Color: White

Includes corner wall mount

Dimensions:

Dimensions 60 mm (W) x 90 mm (H) x 100 mm (D)

Depth: 100 mm

Height: 90 mm

Width: 60 mm

General

Product type: Motion detector

Additional functions: None

Detection angle: 240°

Detection range: 12 m

Sensor type: Passive infrared

Creeping protection: Yes

Time setting: 10 sec. - 15 min.

Mounting: Wall/corner installation

Environmental conditions: Outdoor use: No

Operating temperature min.: -20 °C

Operating temperature max.: +50 °C

Protection class: IP54

Power: Input voltage: 230 V.
