Steinel 086190

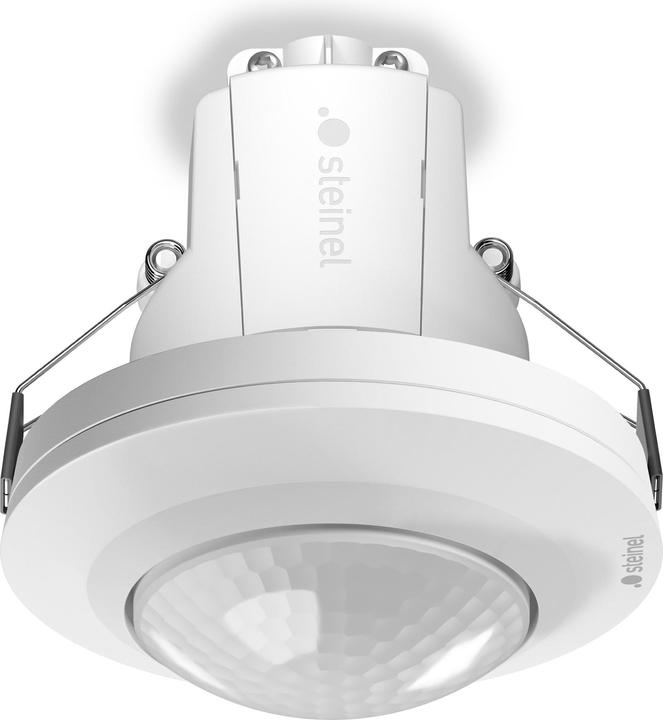

Steinel IR presence detector PD IR 4360-8 #086190

Manufacturer: Steinel
Designation: IR presence detector
Type: PD IR 4360-8 #086190
Bus system KNX: Yes
Bus system KNX radio: No
Bus system radio bus: No
Bus system LON: No
Bus system Powernet: No
Other bus systems: Without radio
Bidirectional: No
Mounting type: Other
Material: Plastic
Material quality: Other
Colour: White
Transparent: No
With bus coupling: Yes
Extension unit input: No
Operating mode switch: No
Optimum mounting height: 2.8 m
Max. range to one side: 4 m
Max. frontal range: 4 m
Detection field diameter on floor: 4.5 m
Horizontal detection angle: 360°
Number of channels: 2

The Steinel IR presence detector PD IR 4360-8 #086190 offers motion detection, presence detection, and light measurement for offices, meeting rooms, passageways, and more. The 360° IR presence detectors comply with sensNORM and are ideal for sensor-based standard requirements in the property sector. It features COM1, KNX, and DALI-2 IPD interfaces, with KNX supporting 2 light outputs including constant light control, logic gate, and other outputs and functions such as day/night switching and sabotage protection.

The range for motion detection is Ø 8 or Ø 24 m, while the presence detector function has a detection range of Ø 6 or Ø 7.5 m. Colour-matching, plug-in cover caps are included. It can be installed flush-mounted, surface-mounted, or on the ceiling. Setting and operation are managed via KNX bus and ETS. The programming mode can be activated remotely using Smart Remote control via an app.

Installation is made easy with a magnetic mounting bracket, and LED feedback ensures safe commissioning. The maximum installation height is 4 m, with the capability for parallel connection of up to 10 sensors. The current consumption is 15 mA at 24V. Available in black or white. EAN: 4007841086190.
