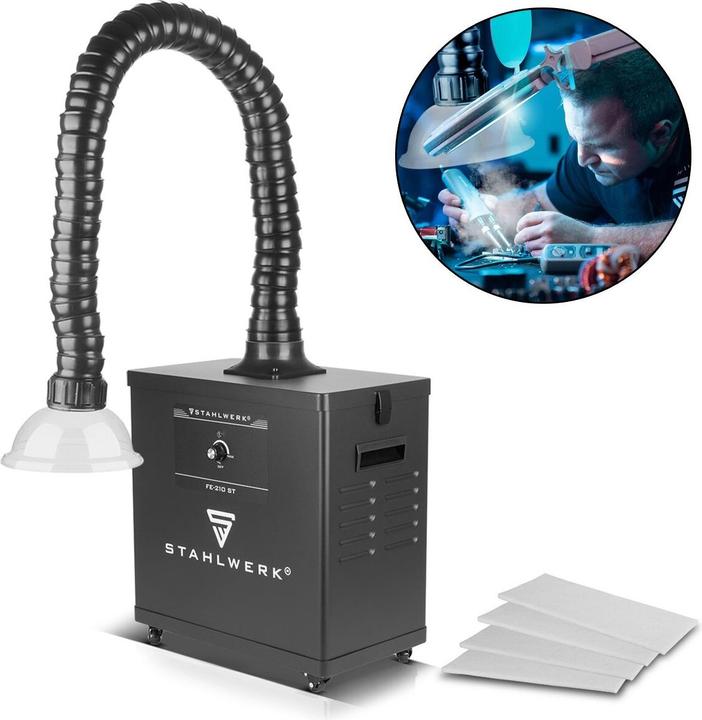

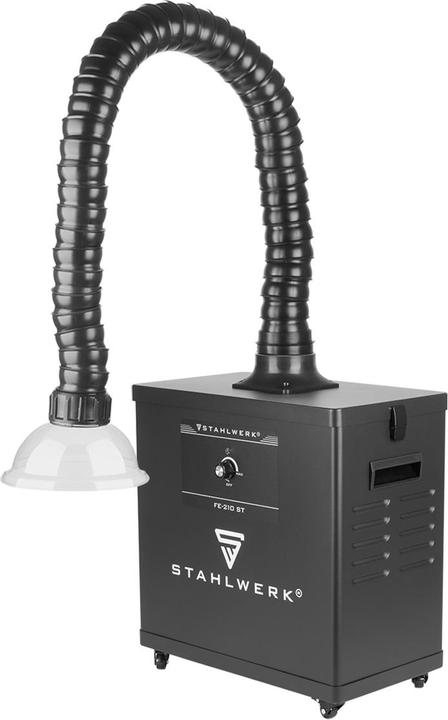

Stahlwerk Fume extraction unit FE-210 ST with triple filter and 210 W extraction system

Properties

With an output of 210 watts, the Stahlwerk FE-210 ST fume extraction unit is ideal for the effective extraction and filtration of fumes, gases and vapours, such as those produced during soldering, welding or plasma cutting.

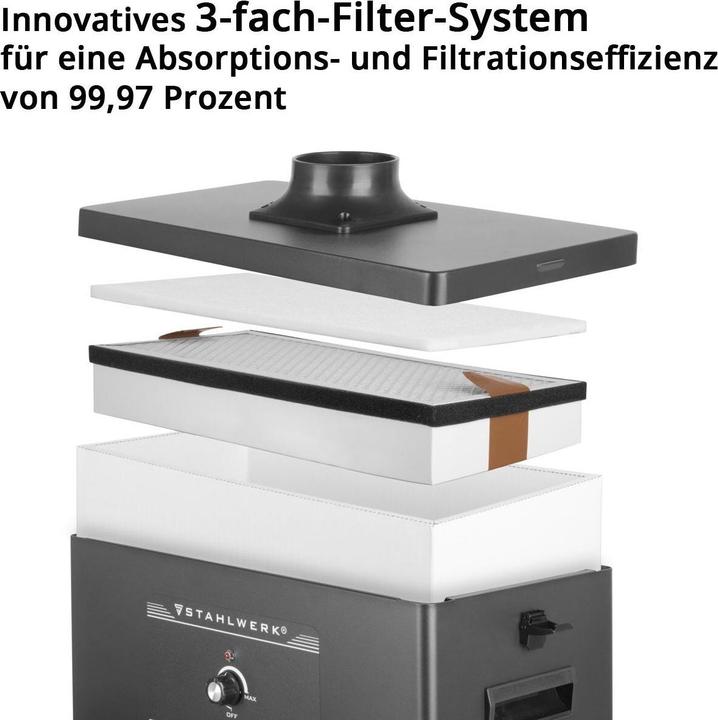

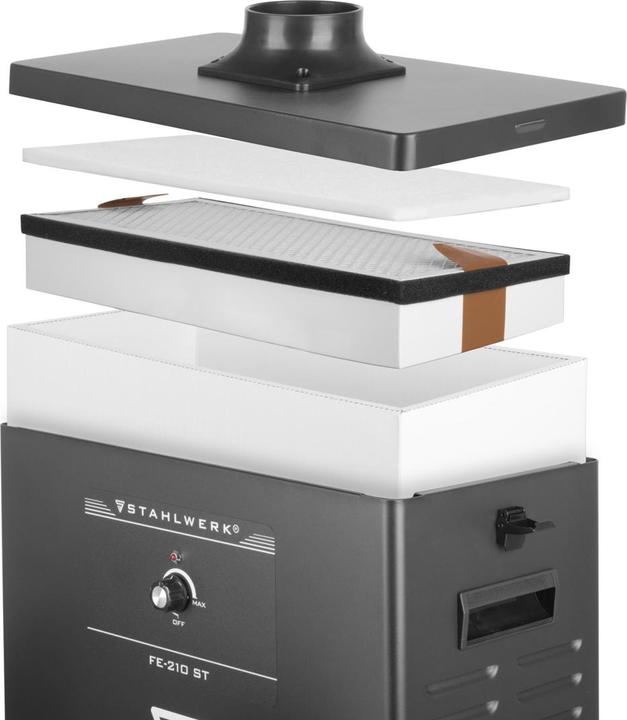

Equipped with an innovative triple filter system with powerful extraction performance, the universal extraction system achieves an absorption and filtration efficiency of 99.97 per cent. The cleaned air can then be discharged back into the interior.

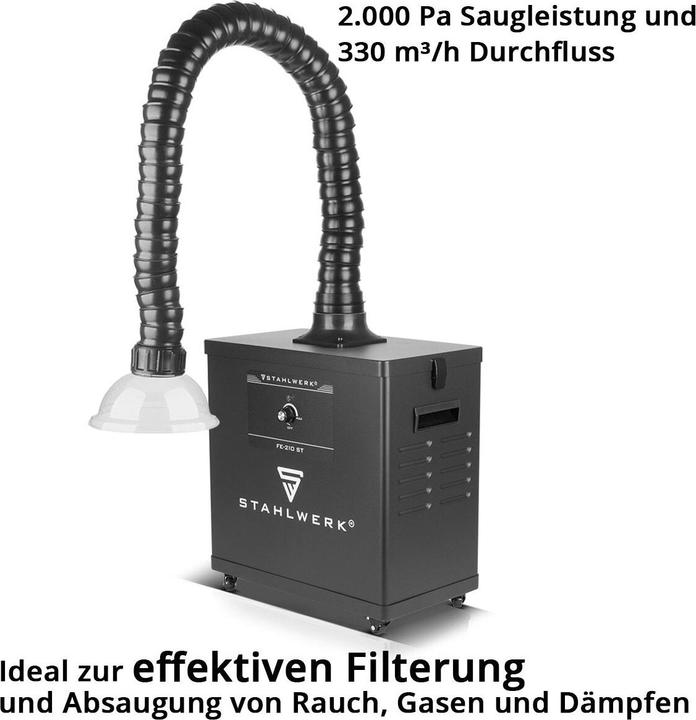

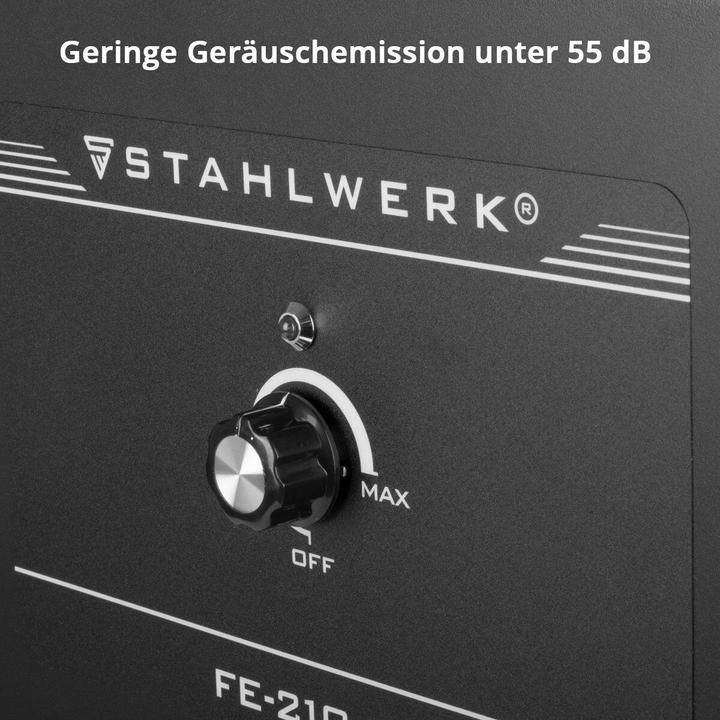

Welding fumes and soldering fumes are extracted with a suction capacity or negative pressure of 2,200 pascals and a systemic flow rate of 330 m3/h. The smoke absorber operates extremely quietly with noise emissions of less than 55 dB.

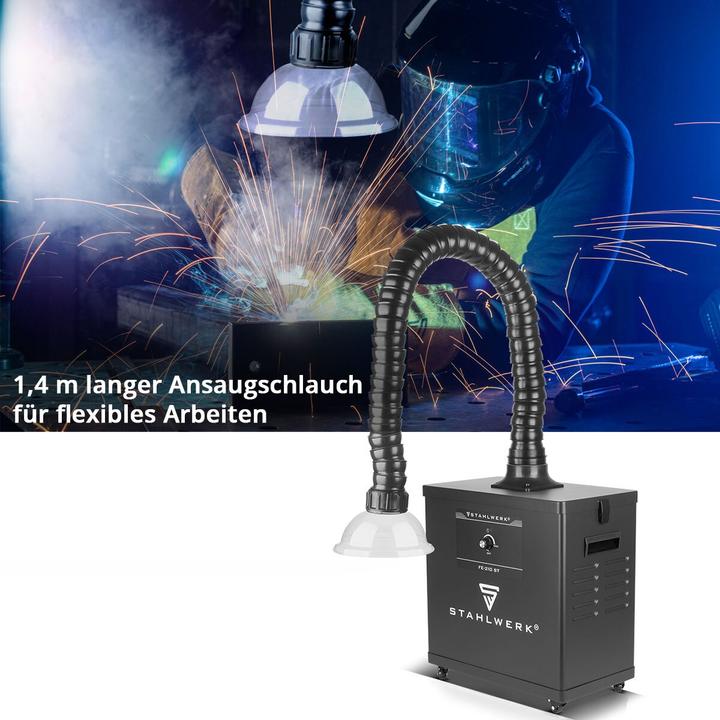

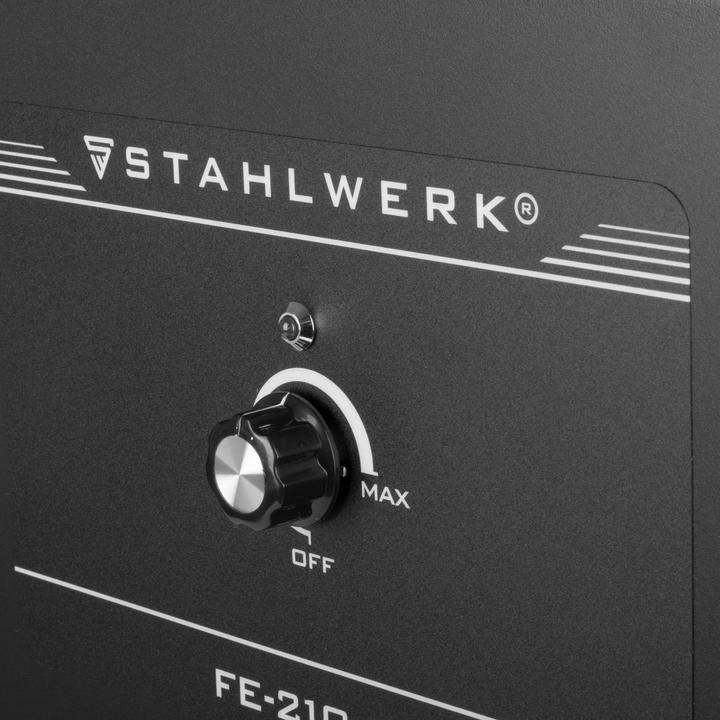

The intensity of the smoke extraction air flow can be infinitely adjusted on site according to individual requirements. The smoke extraction bonnet can be flexibly aligned thanks to the 1.4 metre long intake hose.

Technical data

Model: Steel mill fume extraction unit FE-210 ST
Input voltage: AC 230V / 50 Hz
Maximum power: 210 W
Filtering efficiency: 0.3 by 99.97 %
Noise emission: < 55 dB
Max. Idle speed: 5,100 rpm
Negative pressure: 2,200 Pa
Length of the tube: 1.4 m
Air inlet interface: ø 75 mm
Systemic flow rate: 330 m³/h
Filter class: H13 HEPA filter according to EN 1822
Dimensions of the main unit: 425 x 250 x 410 mm

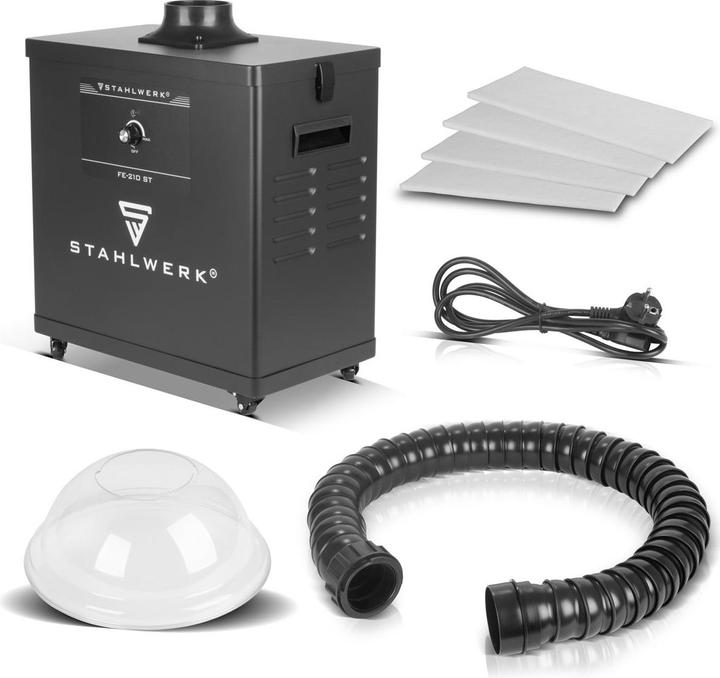

Scope of delivery

1 x FE-210 ST steelworks fume extraction unit
4 x replacement filters
1 x flexible extraction hose
1 x extraction bell
1 x power cable with shockproof plug 2 m
