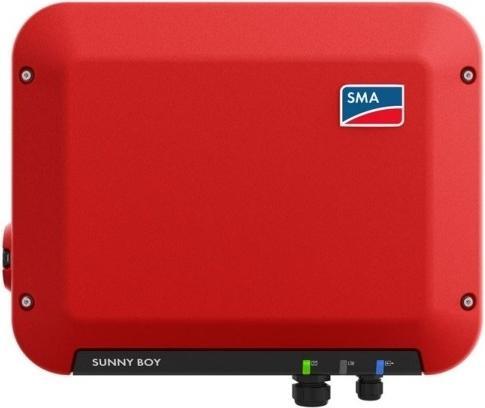

SMA SB 1.5-1VL-40 Inverter (SB 1.5-1VL-40)

Inverter Sunny Boy 1.5/2.0/2.5 with SMA Smart Connected. One-person installation thanks to a lightweight design of 9.2 kg. Minimal space requirement due to compact design. 100% plug-and-play. Free online monitoring via the SMA Energy App. Automated service through SMA Smart Connected. Factory support extension from 5 to 10 years - free of charge. Utilization of excess energy through dynamic active power limitation. Increased yield without installation effort thanks to integrated shading management SMA ShadeFix. Additional input voltage range. Expandable at any time with intelligent energy management and storage solutions. Easy commissioning via integrated WLAN and Speedwire interface. Maximum transparency through visualization in Sunny Portal/SMA Energy App. Investment security through SMA Smart Connected. Modbus as a third-party interface with SMA Energy Meter. Maximum system utilization through dynamic limitation of feed-in to the grid between 0% and 100%. Visualization of energy consumption. DC connection/AC connection: SUNCLIX/connector. Max. input power DC 3000 W. Max. input voltage DC 600 V. Max. input current at DC 10 A. Max. input current DC per MPP tracker 10 A. Rated voltage MPP 160.00 - 480.00 V. Output rated power AC 1500 W. Number of independent MPPT inputs 1. Max. efficiency 97.2%. European efficiency 96.1%. With transformer input phases single-phase. Integrated DC switch yes. With data logger yes. Display no. Ethernet yes. Wireless yes. Built-in battery no. Emergency power capability no. Suitable for outdoor installation yes. Protection class (IP) IP65. String connections per MPPT input 1. DC connection connector. AC connection connector. Weight 9.2 kg. Width 460 mm. Height 357 mm. Depth 122 mm.
