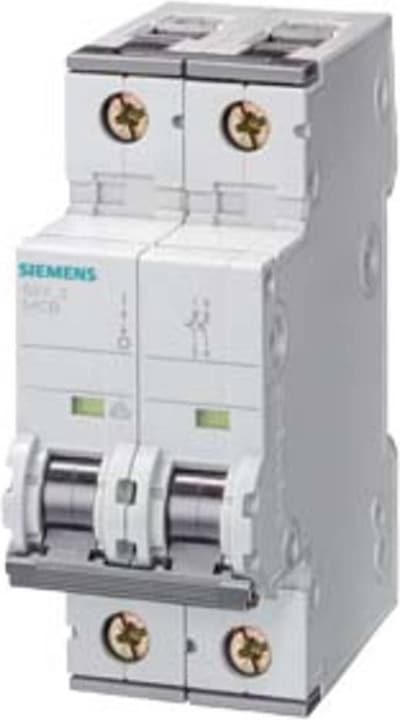

Siemens SIEM 5SY5206-7 Circuit breaker C 6A 2p

Delivered between Tue, 10.6. and Thu, 19.6.

Product details

All-current circuit breaker DC 440V AC 400V 10kA, 2-pole, C, 6A SENTRON 5SY for safe short-circuit and overload protection for residential buildings, purpose-built structures, and special industrial applications. Tool-free installation and removal of the device using a double slider. Any combination of conductors and busbars is possible with the double-chamber terminal. Easy wiring of the supply through the rear busbar. The 5SY circuit breakers are available in 1-, 2-, 3-, 4-, as well as in 1+N and 3+N pole versions. The complete accessories are uniformly applicable for all 5SY circuit breakers. Simply safe with SENTRON protection devices.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
76 mm
Width
36 mm
mounting style
Flush-mounted
number of poles
2
Item number
32135524

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
5SY52067
Release date
16.11.2022
External links

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Flush-mounted
number of poles
2
Tripping characteristic
C
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

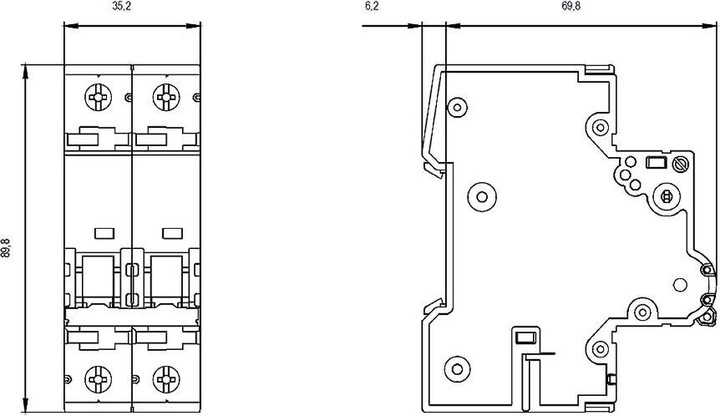

Product dimensions

Length
76 mm
Width
36 mm
Height
90 mm
