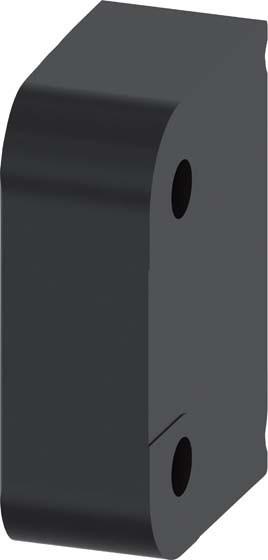

Siemens Magnetic contact up bw 3SE6724-3CA
Product details
Siemens digital industrial switching element 3SE6724-3CA. Manufacturer: Siemens. Designation: Small switching element 25 x 36 mm. Type: 3SE6724-3CA. Width of the sensor: 26 mm. Height of the sensor: 36 mm. Length of the sensor: 13 mm. Explosion protection category for gas: none. Explosion protection category for dust: none. Material of the housing: plastic. SIL according to IEC 61508: none. Performance Level according to EN ISO 13849-1: none. Ambient temperature: -25 to 70 °C. Protection class (IP): IP67.
The Siemens digital industrial switching element 3SE6724-3CA is a small, rectangular switching magnet with dimensions of 26 x 36 mm, suitable for magnetic switches 3SE66..-3CA0. It is mounted at a 90° offset. The SIRIUS 3SE67 magnetic switch enables space-saving, tamper-proof monitoring of safety gates, flaps, or protective doors. The contactless coded devices are compact and meet the highest safety requirements according to PL e or SIL 3. They are available in various shapes and sizes. Different combinations of switching elements and cable lengths, as well as variants with LED for quick diagnostics and connectors for fast connection, are available. Accessories include spacers and various couplings with connection cables in different lengths. Safety is a SIRIUS business. EAN: 4047621001487.
