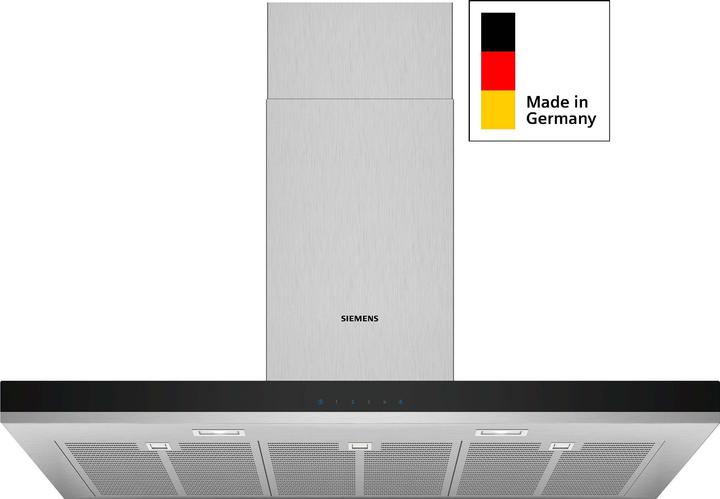

Siemens LC97BHM50

Design: Wall-mounted hood, 90 cm

Operating mode and performance: Can be used in either exhaust or recirculation mode. For recirculation mode, a standard recirculation kit or a Clean Air Plus recirculation kit (optional accessory) is required. Fan performance according to EN 61591 in exhaust mode: Max. normal level: 453 m³/h, intensive level: 739 m³/h. Noise levels according to EN 60704-2-13 in exhaust mode: Max. normal level: 65 dB(A) re 1 pW, intensive level: 74 dB(A) re 1 pW. When using the separately available Clean Air recirculation kit (optional accessory), the unit achieves the following values in recirculation mode: Fan performance: Max. normal level: 404 m³/h, intensive level: 499 m³/h. Noise levels: Max. normal level: 72 dB(A) re 1 pW, intensive level: 76 dB(A) re 1 pW.

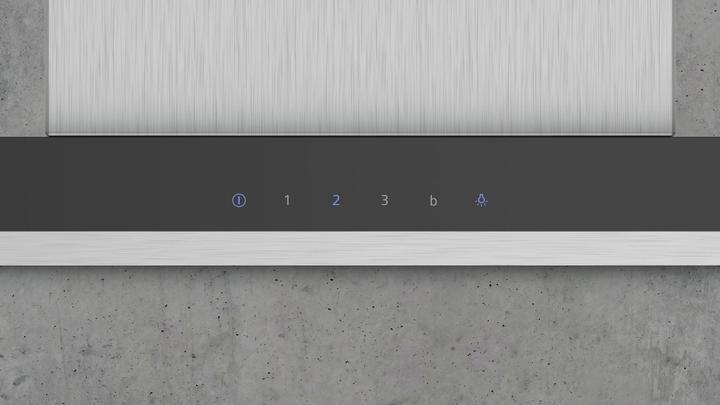

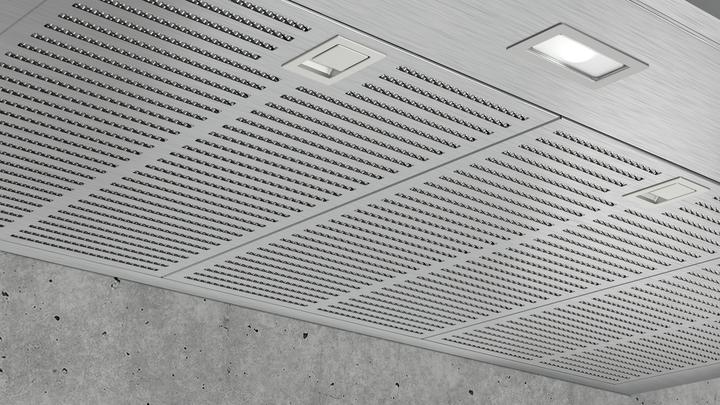

Comfort: Electronic control, touchControl operation with short-stroke buttons and LED display. Extraction for 3 power levels and 1 intensive level. Double-flow high-performance blower. Stainless steel filter cover, perforated and dishwasher safe. Metal grease filter, dishwasher safe. Intensive levels with automatic reset.

Design: Box hood. Even, bright lighting with 2 x 1.5 W LED module. Illuminance: 214 lux. Color temperature: 3500 K.

Environment and safety: Energy efficiency class: B (on an energy efficiency class scale from A+++ to D). Average energy consumption: 62.5 kWh/year. Fan efficiency class: B. Grease filter efficiency class: B. Lighting efficiency class: A. Noise min./max. normal level: 52/65 dB.

Dimensions: For wall mounting above cooking areas. Exhaust connection Ø 150 mm (Ø 120 mm included). Device dimensions exhaust (HxWxD): 635-965 x 900 x 500 mm. Device dimensions recirculation (HxWxD): 635-1075 x 900 x 500 mm. Device dimensions recirculation with Clean Air Plus recirculation kit (HxWxD): 703 x 900 x 500 mm - mounting on external duct, 833-1163 x 900 x 500 mm - mounting on internal duct. Total connection value: 255 W. Cable length: 1.3 m with plug. Delivered with backdraft damper.
