Product details

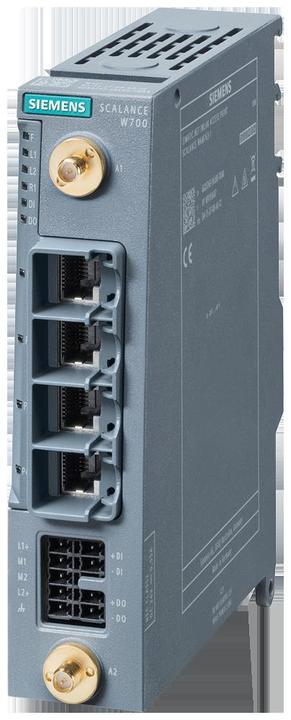

Siemens Digital Industries IWLAN Client/WLAN Bridge 6GK5763-1AL00-3DA0
Manufacturer: Siemens Digital Industries
Designation: IWLAN Client/WLAN Bridge
IP Rating: IP30
Type: 6GK5763-1AL00-3DA0
Max. Transmission Rate: 1201 Mbit/s
Managed: Yes
Bridge Function: Yes
Width: 0.035 mm
Height: 0.1525 mm
Depth: 0.137 mm
Protection Class (IP): Other
Suitable for Wall Mounting: Yes
IWLAN Client features a DI/DO SCALANCE WUM763-1, 1 radio, 2.4/5GHz, 2 R-SMA connectors, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross), 4x10/100/1000 Mbps RJ45 port, redundant DC 24V, terminal block, IP30, operating temperature -30 to +60°C, CLP slot, DI/DO, terminal block.
Observe country approvals!
CERT ID: MSAX-W1-RJ-E2
FCC ID: LYHMSAXV1
Operation outside USA/Israel
Scope of delivery: Cover for CLP slot, covers for antenna connections, 3x terminal block
EAN: 4047622944738.
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Operating modes | Bridge |
Area of application | Indoor |
Number of RJ45/LAN ports | 4 |
Max. port speed | 1201 Mbit/s |
Item number | 37436881 |
Manufacturer | Siemens |
Category | Access points |
Manufacturer no. | 6GK57631AL003DA0 |
Release date | 9.8.2023 |
Operating modes | Bridge |
Number of RJ45/LAN ports | 4 |
Max. port speed | 1201 Mbit/s |
Protection type (IP code) | IP30 |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Area of application | Indoor |
Installation place | Wall |
Power supply | Electrical connection |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 100, 1000 Mbit, 5 GHz, gross data rate 1201 Mbit, CLP slot cover, antenna connection covers, 3x DI terminal block, DO SCALANCE WUM763-1 1xRadio, 2xR-SMA antenna connection, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 2.4, Israel, s RJ45 port, redundant DC 24 V, terminal block, IP30, CLP slot, for operation outside the USA, s, 4x10 |
Length | 0.01 cm |
Width | 0 cm |
Height | 0.02 cm |
