Siemens Circuit breaker KA Npole 0A

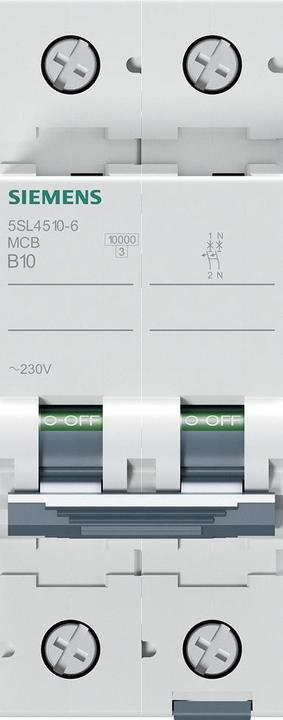

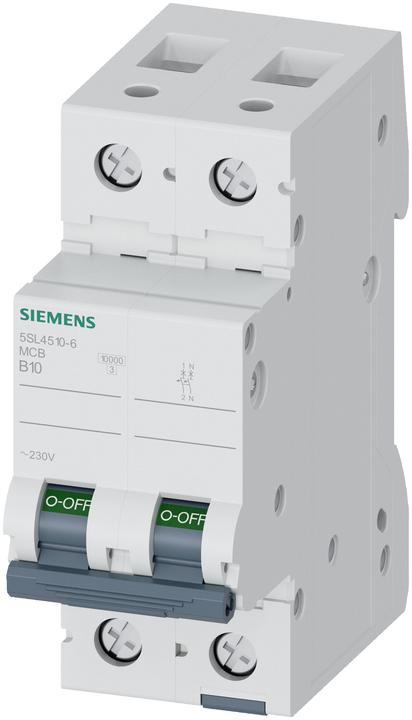

Siemens Dig.Industr. Circuit Breaker 5SL4510-6

Manufacturer: Siemens Dig.Industr.
Designation: Circuit Breaker 10kA, 1+N, B, 10A
Type: 5SL4510-6
Installation Depth: 70 mm
Tripping Characteristic: B
Total Number of Poles: 2
Number of Protected Poles: 1
Rated Current: 10 A
Rated Voltage: 230 V
Rated Breaking Capacity Icn according to EN 60898 at 230 V: 10 kA
Type of Voltage: AC
Rated Breaking Capacity Icn according to EN 60898 at 400 V: 10 kA
Rated Breaking Capacity Icu according to IEC 60947-2 at 230 V: 10 kA
Rated Breaking Capacity Icu according to IEC 60947-2 at 400 V: 10 kA
Frequency: 50 Hz
Energy Limitation Class: 3
Flush Mounting: No
Switching Neutral Conductor: Yes
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: Yes
Width in Division Units: 2
Protection Class (IP): IP20
Ambient Temperature During Operation: -25..55 °C
Connectable Conductor Cross-Section Multi-Wire: 0.75..25 mm²
Connectable Conductor Cross-Section Single-Wire: 0.75..25 mm²
Explosion Protected: No

Siemens Dig.Industr. Circuit Breaker 5SL4510-6: Additional Details
Circuit Breaker 230V 10kA, 1+N-pole, B, 10A
SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free installation and removal of the device. Simple wiring of the supply through the rear busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N and 3+N pole configurations, along with various special types. The extensive accessories, such as auxiliary switches, allow for versatile expansion of functions. Simply safe with SENTRON protection devices.
