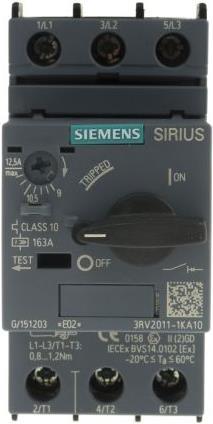

Circuit breaker size S00 for motor protection, CLASS 10 A release 9...12.5 A N release 163 A screw connection. Standard switching capacity of the SIRIUS 3RV2 circuit breakers for motor protection ensures safe disconnection in case of short circuits and protects consumers and systems from overload, as well as providing safe isolation of the system from the power supply. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and are naturally suitable for IE3/IE4 motors and equally for switching direct current. Global approvals (e.g., IEC and UL/CSA) and applications in explosion-prone environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), system protection, short-circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring-loaded connections for quick, maintenance-free, and vibration-resistant installation, and are optionally available with built-in auxiliary switches. The comprehensive accessories, such as auxiliary switches, auxiliary releases, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated SIRIUS 3RV29 power supply system, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven 3RV1 series. Simple, efficient, always up to date - the SIRIUS system modular concept.
Circuit breaker type | Circuit breaker |
Length | 110 mm |
Width | 45 mm |
number of poles | 3 |
Mounting type | Top-hat rail |
Item number | 9724516 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 3RV2011-1KA10 |
Release date | 24.9.2018 |
Colour | Multicoloured |
Exact colour description | Multicoloured |
Circuit breaker type | Circuit breaker |
Mounting type | Top-hat rail |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | Sluggish --- |
Rated voltage | 690 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 690 V |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 110 mm |
Width | 45 mm |
Height | 97 mm |
Weight | 349 g |
