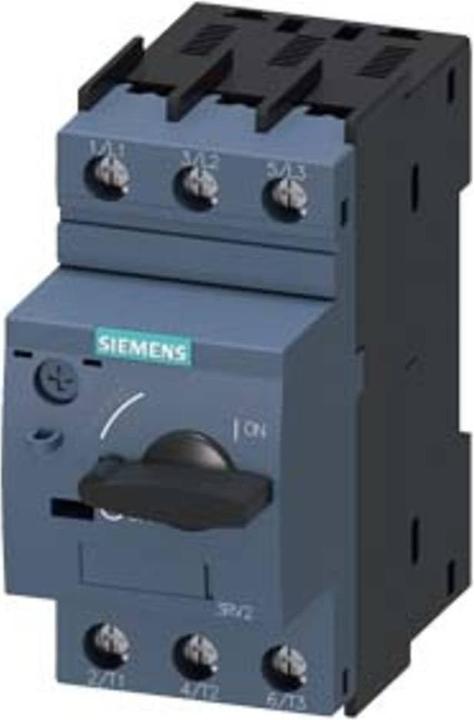

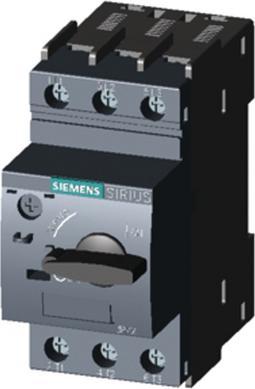

Circuit breaker size S00 for motor protection, CLASS 10 A release 0.55...0.8 A N release 10 A screw connection. Standard switching capacity of SIRIUS 3RV2 circuit breakers for motor protection ensures safe disconnection in case of short circuits and protects consumers and installations from overload, as well as providing safe isolation of the system from the grid. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and are naturally suitable for IE3/IE4 motors and for switching direct current. Global approvals (e.g., IEC and UL/CSA) and applications in explosion-hazardous environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), system protection, short circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring-loaded connections for quick, maintenance-free, and vibration-resistant connections, and optionally with built-in auxiliary switches. The comprehensive accessories, such as auxiliary switches, auxiliary releases, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated power supply system SIRIUS 3RV29, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven series 3RV1. Simple, efficient, always up-to-date - the SIRIUS system modular concept.
Circuit breaker type | Circuit breaker |
Length | 97 mm |
Width | 45 mm |
number of poles | 3 |
Item number | 9724500 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 3RV2011-0HA10 |
Release date | 24.9.2018 |
Colour | Black |
Exact colour description | Black |
Circuit breaker type | Circuit breaker |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | B/6 ka |
Rated current | 0.03 A |
Rated voltage | 690 V |
voltage type | AC/DC |
Rated insulation voltage Ui | 690 V |
Residual current (rated differential current) | 100000 A |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 97 mm |
Width | 45 mm |
Height | 97 mm |
Weight | 274 g |
