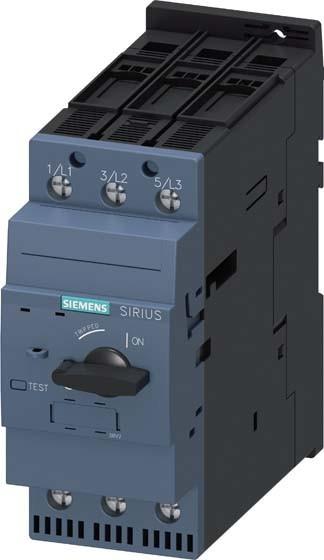

Siemens Circuit breaker 3RV2331-4JC10 1 pc.

Circuit breaker size S2 for starter combinations. Rated current 65 A, N-trigger 845 A, screw connection. Standard switching capacity of SIRIUS 3RV2 circuit breakers for starter combinations ensures safe protection of consumers against short circuits and safe disconnection from the power supply. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and they are also suitable for IE3/IE4 motors and for switching direct current. Worldwide approvals (e.g., IEC and UL/CSA) and applications in explosion-hazardous environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring-loaded connections for quick, maintenance-free, and vibration-resistant connections, and optionally with an integrated auxiliary switch. The comprehensive accessories, such as auxiliary switches, auxiliary triggers, signaling switches, etc., are uniform across all sizes. The use of various energy supply options, such as the associated supply system SIRIUS 3RV29, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven series 3RV1. Simple, efficient, always up-to-date - the SIRIUS system modular kit.
