Siemens Circuit breaker 3 pole

Siemens Dig.Industr. Circuit Breaker 5SL6310-6

Manufacturer: Siemens Dig.Industr.
Designation: Circuit Breaker B10A, 3-pole
Type: 5SL6310-6

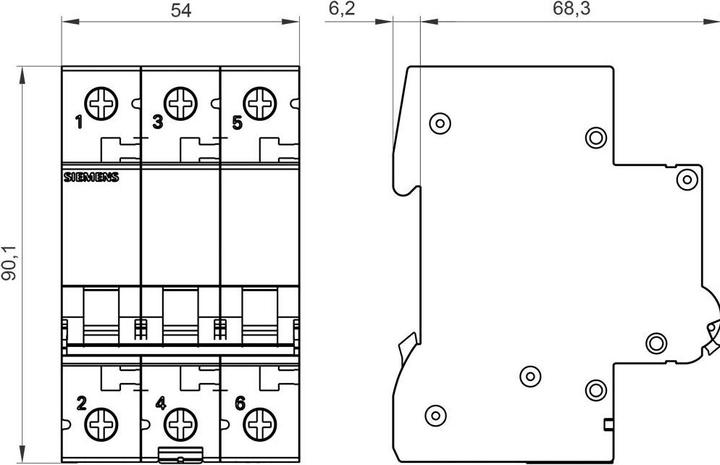

Installation Depth: 70 mm
Tripping Characteristic: B
Number of Poles (total): 3
Number of Protected Poles: 3
Rated Current: 10 A
Rated Voltage: 400 V
Rated Short-Circuit Capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage Type: AC
Rated Short-Circuit Capacity Icn according to EN 60898 at 400 V: 6 kA
Rated Short-Circuit Capacity Icu according to IEC 60947-2 at 230 V: 6 kA
Rated Short-Circuit Capacity Icu according to IEC 60947-2 at 400 V: 6 kA
Frequency: 50 Hz
Energy Limitation Class: 3
Flush Mounting: no
Switching Neutral Conductor: no
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: yes
Width in Division Units: 3
Protection Class (IP): IP20
Ambient Temperature during Operation: -25..45 °C
Connectable Conductor Cross-Section Multi-stranded: 0.75..25 mm²
Connectable Conductor Cross-Section Single-stranded: 0.75..25 mm²
Explosion-Proof: no

Siemens Dig.Industr. Circuit Breaker 5SL6310-6: further details
Circuit breaker 400V 6kA, 3-pole, B, 10A
SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free installation and removal of the device. Simple wiring of the supply through the rear-mounted busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as in 1+N and 3+N pole versions, along with other special types. The extensive accessories, such as auxiliary switches, allow for versatile expansion of functions. Simply safe with SENTRON protective devices.
