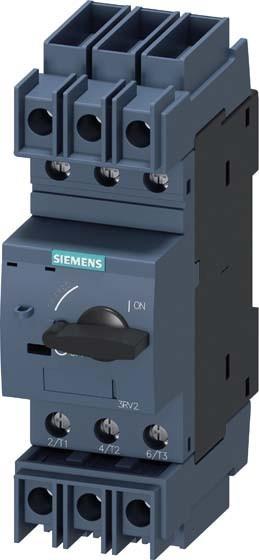

Siemens Circuit-breaker 2.5A 3p IP20 Einb 3RV2711-1CD10

Circuit breaker size S00 for plant protection with approval circuit-breaker UL 489, CSA C22.2 No. 5-02. A-trip 2.5 A, N-trip 33 A, screw connection. Standard switching capacity of SIRIUS 3RV2 circuit breakers for plant protection according to UL 489/CSA C22.2 No. 5 for short-circuit protection of plants and consumers in UL-designed systems. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and are naturally suitable for IE3/IE4 motors. Global approvals (e.g. IEC and UL/CSA) and applications in explosion-risk environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring-loaded connections for quick, maintenance-free, and vibration-resistant connections, and optionally with an integrated auxiliary switch. The comprehensive accessories, such as auxiliary switches, auxiliary trips, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated power supply system SIRIUS 3RV29, significantly reduces the main circuit wiring. The 3RV2 circuit breakers replace the proven series 3RV1. Simple, efficient, always up-to-date - the SIRIUS system modular concept.
