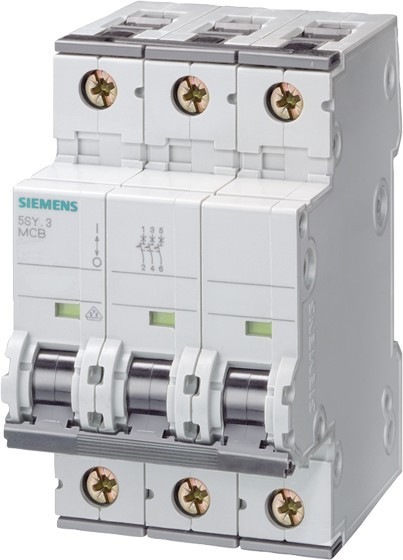

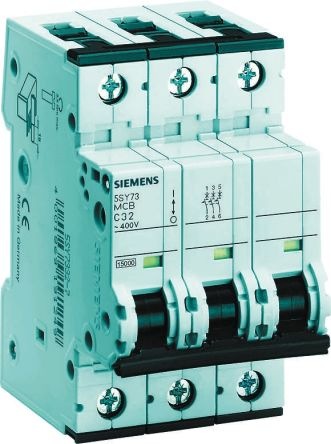

Circuit breaker 400V 15kA, 3-pole, C, 20A, T=70mm. SENTRON 5SY circuit breakers provide safe short-circuit and overload protection for residential buildings, commercial buildings, and specific industrial applications. Tool-free installation and removal of the device using a double sliding mechanism. Any combination of conductors and busbars is possible with the double-chamber terminal. Easy wiring of the supply through the rear busbar. The 5SY circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N and 3+N pole configurations. All accessories are standardized for use with all 5SY circuit breakers. Simply safe with SENTRON protective devices.
Circuit breaker type | Miniature circuit breaker |
Length | 89.80 mm |
Width | 52.80 mm |
mounting style | Flush-mounted |
number of poles | 3 |
Item number | 9730364 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 5SY73207 |
Release date | 24.9.2018 |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit breaker |
mounting style | Flush-mounted |
number of poles | 3 |
Tripping characteristic | C |
Rated current | 20 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 440 V |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 89.80 mm |
Width | 52.80 mm |
Height | 76 mm |
