Siemens Braking resistor

Ratings
BrandMore from Siemens
Delivered between Tue, 11.11. and Fri, 28.11.
free shipping

Product details

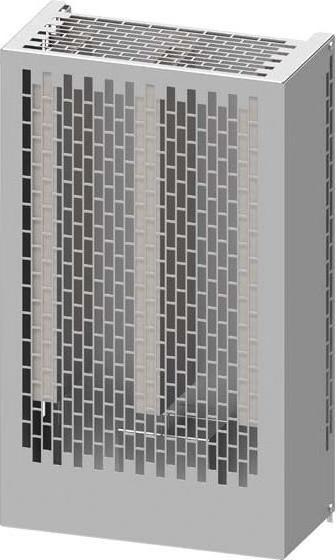

Siemens Digital Industry Brake Resistor JJY:023434020001

Manufacturer: Siemens Digital Industry
Description: Brake Resistor 10.00 Ohm
Type: JJY:023434020001
Accessory/Spare Part Type: Brake Resistor

Further Details:
Brake resistor for Power Modules PM240-2 FSE P_MAX=55kW/12S/5% ED R=10 Ohm P_CONTINUOUS=2750W. Accessory for frequency converters. Brake resistor for the Power Module PM240-2 for the modular frequency converter SINAMICS G120. The brake resistors dissipate the excess energy from the DC link. They are designed for use with Power Modules PM240-2 and PM240 (mounted next to the Power Modules), which have an integrated brake chopper and cannot feed back generated energy into the grid.

For regenerative operation, such as braking a flywheel with a large moment of inertia, a brake resistor must be connected to convert the generated energy into heat. For Power Modules sizes FSD to FSGX, the brake resistors should be placed outside the control cabinet or outside the switchgear room to remove the generated waste heat from the area of the Power Modules. This reduces the air conditioning effort.

Each brake resistor is equipped with a temperature switch. To avoid subsequent damage in case of thermal overload of the brake resistor, the temperature switch should be monitored. The brake resistor is available for sizes FSA to FSC as well as for the Power Module PM240-2 (size FSC to FSF). For size FSGX, a plug-in braking module is optionally available.

SINAMICS - simply my drive.
EAN: 4042948669013.

Key specifications

Voltage transformer type
Vehicle voltage transformer
Item number
36802799

General information

Manufacturer
Siemens
Category
Power inverters
Manufacturer no.
JJY:023434020001
Release date
28.6.2023

Voltage Transformer Properties

Voltage transformer type
Vehicle voltage transformer

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

30-day right of return
24 Months Warranty (Bring-in)
