Siemens 6XV1871-5MH50 IE Connecting Cable RJ45, 5.0 m

CAT5e, 5 m
CHF18.38/1m
Ratings
BrandMore from Siemens
Delivered between Wed, 17.9. and Tue, 7.10.
free shipping

Product details

Siemens digital industrial IE connecting cable 6XV1871-5MH50

Manufacturer: Siemens Digital Industrial
Description: IE connecting cable RJ45, 5.0 m
Type: 6XV1871-5MH50
Conductor surface: Bare
Conductor diameter: 0.75 mm
Number of cores: 4
Number of stranding elements: 2
Stranding element: Four
Core insulation material: Other
Core identification: Colour
Shield over stranding element: Without stranding
Shield over stranding: Foil + braiding
Suitable for buried installation: No
Sheath material: Polyvinyl chloride (PVC)
Specification sheath material: Other
Sheath colour: Green
Fire performance class according to EN 13501-6: None
Flame retardant: No
Low smoke according to EN 61034-2: No
Outer diameter approximately: 6.5 mm
Minimum permissible bending radius, flexible use with forced guidance: 49 mm
Minimum permissible bending radius, flexible use/free movement: 49 mm
Minimum permissible bending radius, stationary use/fixed installation: 49 mm
Permissible cable outer temperature during installation/handling: -10 to 75 °C
Permissible cable outer temperature after installation without shock: -4 to 75 °C
Permissible cable outer temperature after assembly without shock: -25 to 75 °C
Category: 5E
NVP value: 66%

Siemens digital industrial IE connecting cable 6XV1871-5MH50: more details

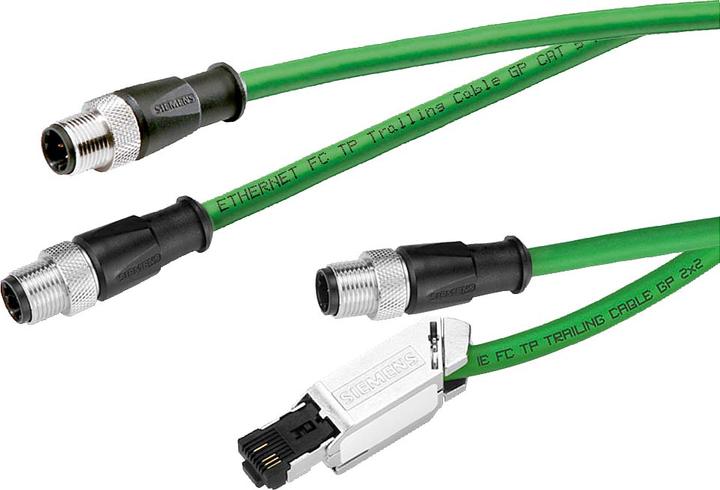

IE connecting cable M12-90/IE FC RJ45 plug-180, IE FC trailing cable GP preferred with M12 plug (D-coded) and IE FC RJ45 plug, length 5.0 m. SIMATIC NET IE plug-in cable M12-90/IE FC RJ45.

Key specifications

Patch cable type
Copper cable
Item number
31401697

General information

Manufacturer
Siemens
Category
Network cables
Manufacturer no.
6XV18715MH50
Release date
27.9.2022

Colour

Cable colour
Green

Material

Material
Polyvinyl chloride (PVC)
Material of the isolation
Polyvinyl chloride

Cable properties

Connection A
RJ45
Connection B
RJ45
Cable Application
Network
Cable connection
Connection (m/m)
American Wire Gauge (AWG)
4
Temperature range
-25° - 75° C

Patch cable properties

Patch cable type
Copper cable

Twisted-pair cable properties

Cable category
CAT5e

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x
Scope of delivery
IE Connecting Cable M12-90, IE FC RJ45

Product dimensions

Diameter
0.75 mm
Length
5 m
Width
6.50 mm
