Siemens 6GK52164GS002AC2 6GK5216-4GS00-2AC2 Industrial Ethernet Switch
16 PortsProduct details

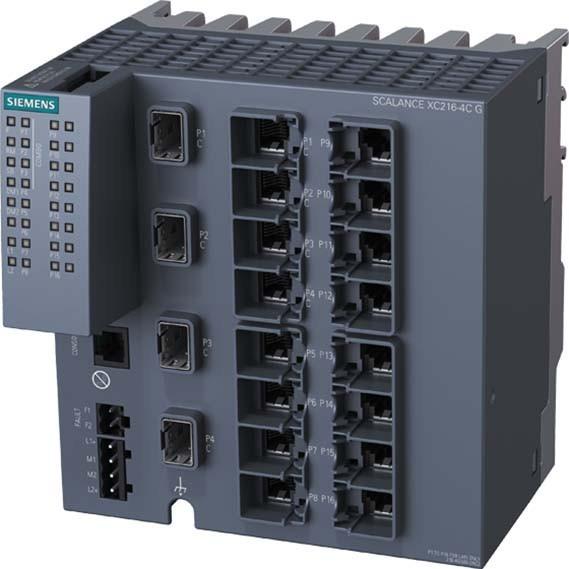

Siemens Dig.Industr. SCALANCE XC216-4C G 6GK52164GS002AC2
Manufacturer: Siemens Dig.Industr.
Designation: SCALANCE XC216-4C G
Type: 6GK52164GS002AC2
Mounting: DIN rail
Manageable: Yes
Protection class (IP): IP20
Height: 150 mm
Width: 140 mm
Depth: 125 mm
The SCALANCE XC216-4C G is a manageable Layer 2 IE switch, IEC 62443-4-2 certified, featuring full Gigabit connectivity with 12x 10/100/1000 Mbit/s RJ45 ports and 4x 1000 Mbit/s combo ports (which can utilize either 1000 Mbit/s SFPs or 10/100/1000 Mbit/s RJ45 ports). It includes 1 console port, diagnostics LED, and a redundant power supply. The operating temperature range is -40°C to +70°C, and it can be mounted on DIN rail, S7 profile rail, or wall. The device supports redundancy functions and office features such as RSTP and VLAN. It is compliant with PROFINET IO and Ethernet/IP, and includes a C-PLUG slot.
Max. port speed | 1000 Mbit/s |
Network connections | RJ45 (16x), SFP (4x) |
Switchtype | Rack Switch |
Management | Unmanaged |
Switch functions | Quality of Service (QoS) |
Item number | 34062024 |
Manufacturer | Siemens |
Category | Network switches |
Manufacturer no. | 6GK52164GS002AC2 |
Release date | 17.5.2023 |
Switchtype | Rack Switch |
Number of ports | 16 Ports |
Management | Unmanaged |
Switch functions | Quality of Service (QoS) |
switching layer | Layer 2 |
Manufacturer Type | 6GK52164GS002AC2 |
Network connections | RJ45 (16x), SFP (4x) |
Max. port speed | 1000 Mbit/s |
Max. port speed RJ45 | 1000 Mbit/s |
Max. Port speed | 1000 Mbps / 1 Gbps |
Application range | Business, Industry |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Length | 20.50 cm |
Width | 14 cm |
Height | 15 cm |
