Siemens 5SL6010-6 CABLE PROTECTION SWITCH 230V 6KA 1+N-pole.

Ratings
BrandMore from Siemens
Delivered between Tue, 24.6. and Wed, 2.7.
More than 10 items in stock at supplier

Product details

Siemens Dig.Industr. Circuit Breaker 5SL6010-6

Manufacturer: Siemens Dig.Industr.
Description: Circuit breaker 230V 6kA 1+N-pole
Type: 5SL6010-6
Installation depth: 70 mm
Tripping characteristic: B
Total number of poles: 2
Number of protected poles: 1
Rated current: 10 A
Rated voltage: 230 V
Rated insulation voltage Ui: 250 V
Rated impulse voltage withstand Uimp: 4 kV
Rated breaking capacity Icn according to EN 60898 at 230 V: 6 kA
Type of voltage: AC
Rated breaking capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50 Hz
Energy limitation class: 3
Flush-mounted: no
Switching neutral conductor: yes
Overvoltage category: 3
Degree of pollution: 2
Additional devices possible: yes
Width in division units: 1
Protection class (IP): IP20
Ambient temperature during operation: -25..60 °C
Connectable conductor cross-section multi-stranded: 0.75..16 mm²
Connectable conductor cross-section single-stranded: 0.75..16 mm²
Explosion-proof: no

Siemens Dig.Industr. Circuit Breaker 5SL6010-6: further details
Circuit breaker 230V 6kA, 1+N-pole/1TE B10

SENTRON 5SL circuit breakers provide safe short-circuit and overload protection for standard applications in residential and commercial buildings. Tool-free installation and removal of the device. Simple wiring of the supply through the rear-mounted busbar. The 5SL circuit breakers are available in 1-, 2-, 3-, 4-, as well as 1+N- and 3+N-pole versions, along with other special types. The extensive accessories, such as auxiliary contacts, allow for versatile expansion of functions. Simply safe with SENTRON protective devices.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
70 mm
Width
18 mm
mounting style
Top-hat rail
number of poles
2
Item number
30424742

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
5SL60106
Release date
19.4.2021

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
10 A
Rated voltage
230 V
voltage type
AC/DC
Rated insulation voltage Ui
250 V
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

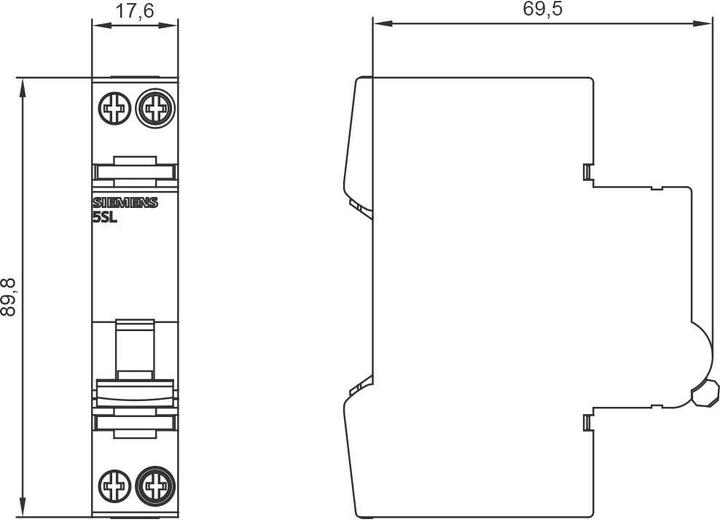

Product dimensions

Length
70 mm
Width
18 mm
Height
90 mm

Package dimensions

Length
9 cm
Width
9 cm
Height
2 cm
Weight
100 g
