Siemens 3UF7011-1AU00-1 Basic device 1xRJ45
Product details

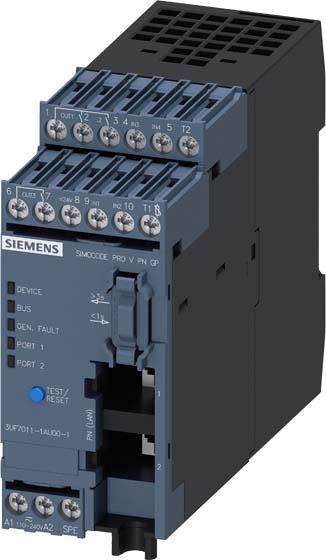

The SIMOCODE pro V PN GP basic unit from Siemens is a highly advanced motor management system specifically designed for use with asynchronous motors. It offers comprehensive protection, monitoring, and control functions, enabling precise capture of operating, service, and diagnostic data. Equipped with a PROFINET IO interface, it supports various starter configurations, including direct, reversing, and star-delta starters. The device operates independently of the automation system and can be supplemented with an expansion module to integrate additional inputs and outputs. Data transmission occurs via Ethernet/PROFINET IO at a transmission rate of 100 MBit/s, allowing seamless communication with process control systems and controllers. Additionally, the system is certified for use in explosive environments and supports the latest motor classes IE3 and IE4. The ability to transmit data via OPC UA to various systems makes it a flexible solution for modern automation requirements.
- Expandable with a module for digital, earth fault, or temperature monitoring
- Detailed operating and diagnostic data via common fieldbus systems
- Support for explosive applications (ATEX, IEC Ex)
- Compatible with IE3/IE4 motors
- Standalone functionality independent of the automation system.
