Sick WTB26I-24161120A00

2 m
Ratings
Delivered between Sat, 19.7. and Tue, 12.8.
free shipping

Product details

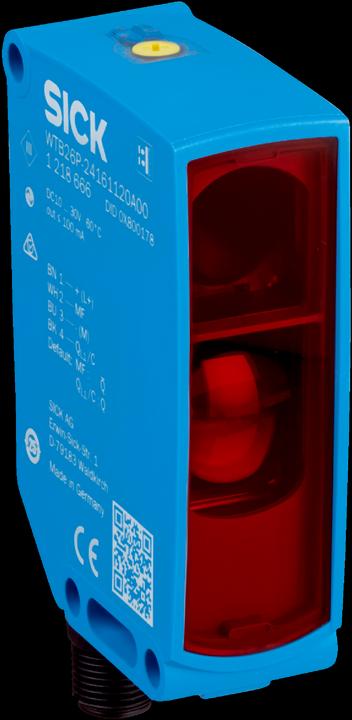

Sick photoelectric proximity switch WTB26I-24161120A00

Manufacturer: Sick
Designation: Photoelectric proximity switch with background suppression
Type: WTB26I-24161120A00
Max. switching distance: 2000 mm
Switching distance: 2000 mm
Design of interface for safety-related communication: Other
Design of electrical connection: Plug connector M12
Design of switching output: Other
Equipment protection class: Protection class 3
Enclosure type: Cuboid

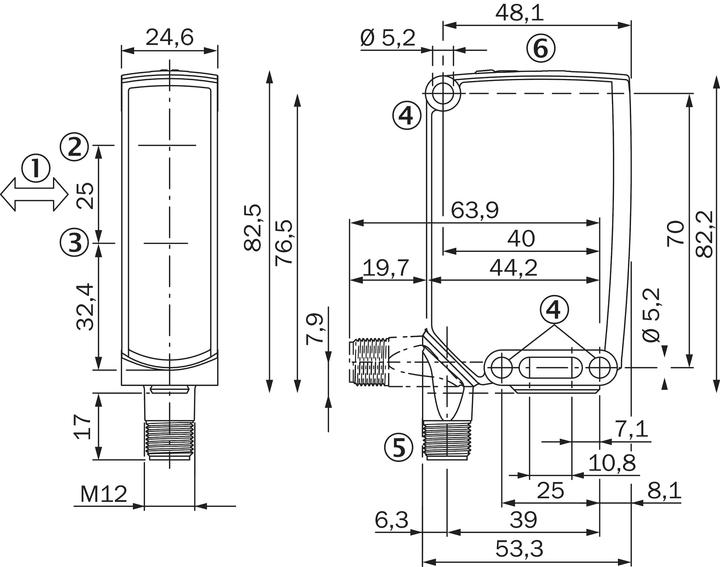

Width of sensor: 24.6 mm
Height of sensor: 82.5 mm
Length of sensor: 53.3 mm

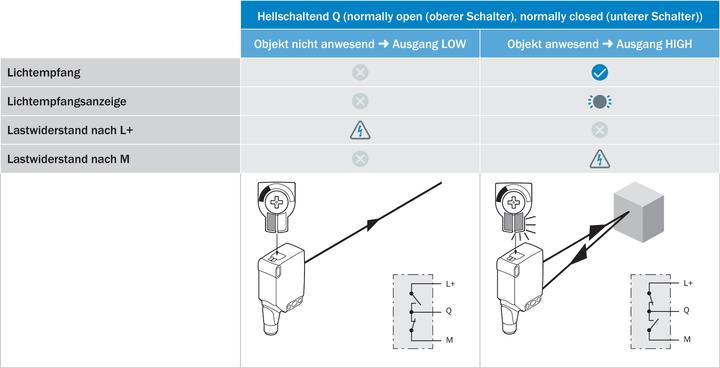

Scanning function: Light/dark switching
Material of optical surface: Plastic
Material of enclosure: Plastic
Max. output current at safe output: 100 mA
Ambient temperature: 60 °C
Response time: 0.5 ms
Switching frequency: 1000 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Voltage type: DC
Wavelength of sensor: 850 nm
Light type: Infrared light
Protection class (IP): IP66

Sick photoelectric proximity switches WTB26I-24161120A00: further details
Compact photoelectric proximity switches, W26, WTB26I-24161120A00
Device type: Photoelectric proximity switches and photoelectric sensors
Switching distance min. / max.: 30 mm / 2000 mm
Sensor principle: Diffuse reflection light scanner

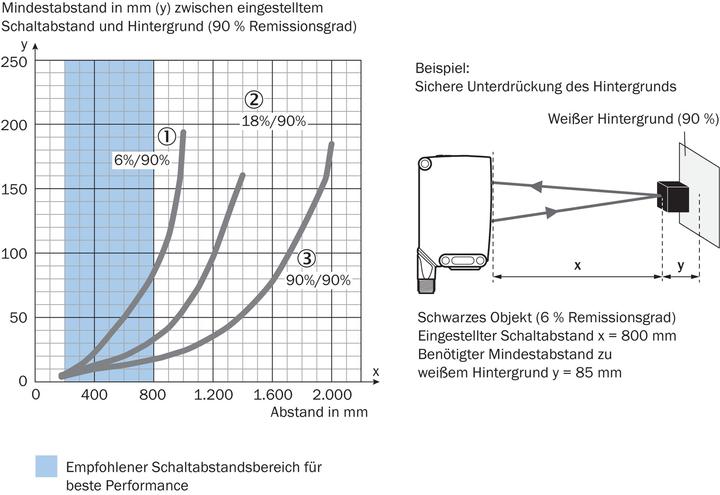

Detection principle: Background suppression
Switching output: Push-pull: PNP/NPN
Connection type: M12 plug, 4-pin
Light emitter: LED
Light type: Infrared light
Housing material: VISTAL®

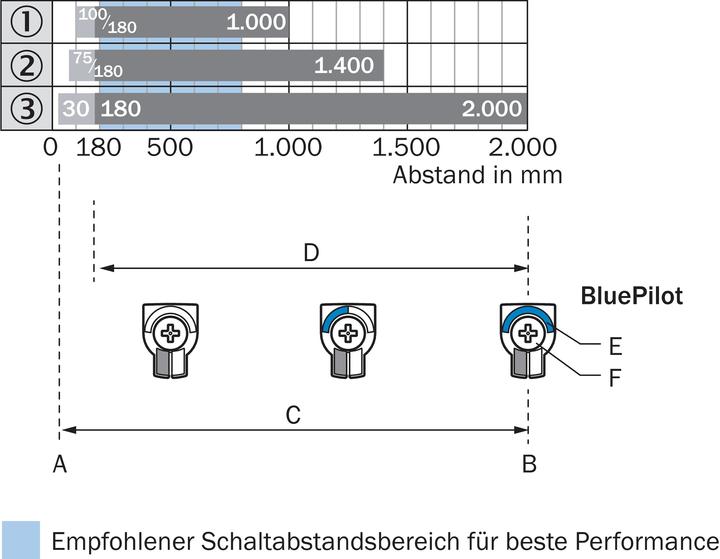

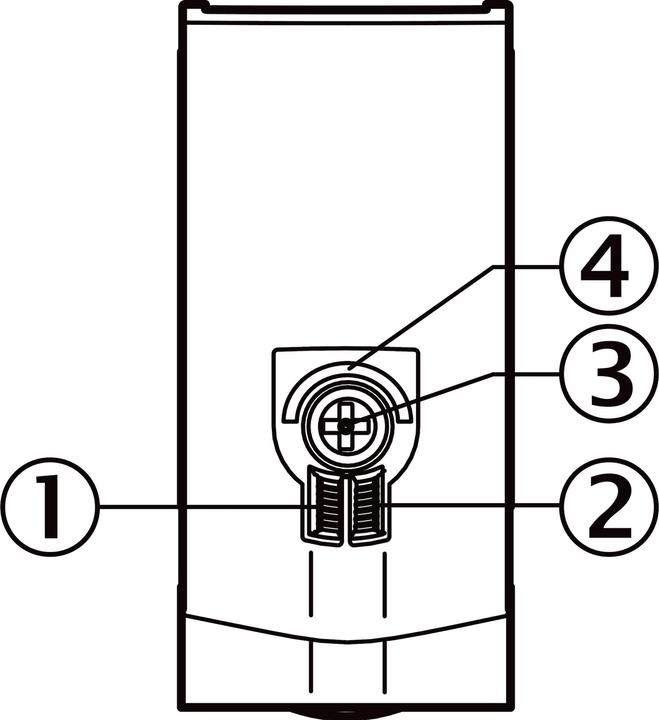

Setting: Teach-in button, cable, potentiometer, push-turn element
Communication interface: IO-Link V1.1
Smart Sensor: Enhanced sensing (basic logic), efficient communication, smart task
EAN: 4047084419270.

Key specifications

Range
2 m
Item number
31825114

General information

Manufacturer
Sick
Category
Motion sensors
Manufacturer no.
1218667
Release date
12.10.2022

Material

Material group
Plastic
Material
Plastic, VISTAL®

Motion sensor properties

Range
2 m
Protection type (IP code)
IP66, IP67, IP69

Power supply

Power supply
Electrical connection
Output voltage
10 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
5.33 cm
Width
2.46 cm
Height
8.25 cm
Weight
80 g
