Sick Small photoelectric sensors

7 m
Ratings
Delivered between Sat, 20.9. and Fri, 10.10.
free shipping

Product details

Sick small photoelectric sensors WL12-3P2441

Manufacturer: Sick
Designation: Small photoelectric sensors
Type: WL12-3P2441
Rated switching distance: 5000 mm
Max. switching distance: 7000 mm
Max. output current: 100 mA
Setting method: Parameterisation
Number of contact outputs with signalling function: 1
Version of interface for safety-related communication: Other
Version of electrical connection: M12 plug connector
Version of switching output: PNP
Version of switching function: Antivalent
Equipment protection class: Protection class 3
Explosion protection category for gas: None
Explosion protection category for dust: None
Housing design: Cuboid
Width of sensor: 15.6 mm
Height of sensor: 48.5 mm
Length of sensor: 42 mm
Sensing function: Light/dark switching
Material of optical surface: Plastic
Material of housing: Metal
Max. output current at safe output: 100 mA
Ambient temperature: -40 °C
Response time: 0.33 ms
Range of the protective field: 3 m
Switching frequency: 1500 Hz
Rated control supply voltage Us at AC 50 Hz: 10 V
Rated control supply voltage Us at DC: 10...30 V
Voltage type: DC
Laser protection class: Other
Sensor wavelength: 640 nm
Type of light: Red light polarised
Protection class (IP): IP66

Sick small photoelectric sensors WL12-3P2441: more details
Small photoelectric sensors, W12, WL12-3P2441, Device type: Light scanners and photoelectric sensors, Max. switching distance: 0 m ... 7 m, Sensor principle: Retro-reflective photoelectric sensor, Detection principle: Autocollimation, Switching output: PNP, Switching mode: Light/dark switching, Connection type: M12 plug, 4-pin, Light transmitter: LED, Type of light: Visible red light, Setting: Potentiometer, Special features: Without polarising filter, Included in delivery: 2 x clamp holder BEF-KH-W12, incl. screws, EAN: 4047084171338.

Key specifications

coverage angles
1.50°
Range
7 m
Item number
36791415

General information

Manufacturer
Sick
Category
Motion sensors
Manufacturer no.
1041444
Release date
28.6.2023

Material

Material group
Metal
Material
Metal

Motion sensor properties

coverage angles
1.50°
Range
7 m
Protection type (IP code)
IP69K

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
12 x
Scope of delivery
2 x clamp holder BEF-KH-W12, incl. screws

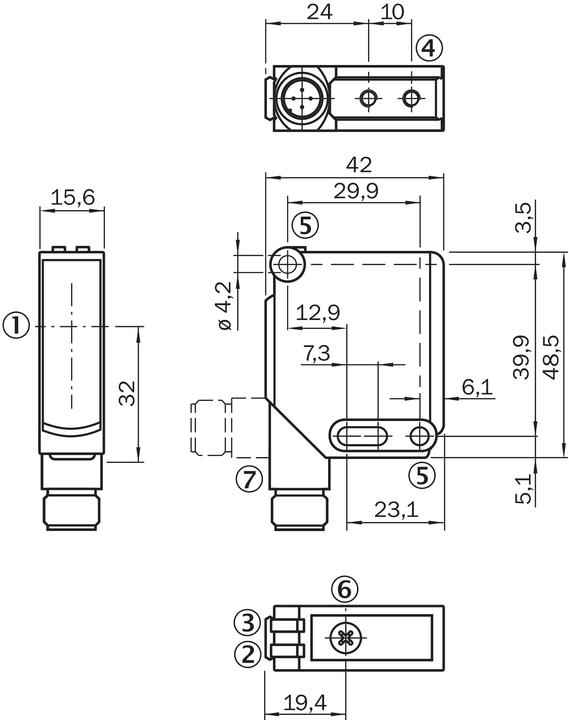

Product dimensions

Length
4.20 cm
Width
1.56 cm
Height
4.85 cm
Weight
120 g
