Sick DT50-P2113 DISTANCE SENSOR

0.20 m
Ratings
Delivered between Thu, 14.8. and Fri, 5.9.

Product details

The DT50-P2113 distance sensor from Sick is a highly advanced laser distance sensor designed for precise measurements across a wide range from 200 mm to 20,000 mm. With a minimal response time of 15 ms, this sensor is ideal for applications requiring fast and accurate distance measurements. The sensor uses a red laser beam and offers various reflectance levels that vary depending on the measurement range. The DT50-P2113 is robustly constructed and meets the IP65 protection class, making it resistant to dust and splashes. It is made from high-quality materials, including zinc die-cast and PMMA, and has a high power consumption of 2.1 W. The sensor is equipped with a digital PNP output and a current output for analog signals, making it versatile for various applications.

  • Measurement range from 200 mm to 20,000 mm
  • Robust design with IP65 protection class
  • Laser class 2 for safe use
  • Digital output: 1 x PNP
  • Multifunction input for enhanced functionality.

Key specifications

type of sensor
Laser
Range
0.20 m
Item number
36367006

General information

Manufacturer
Sick
Category
Motion sensors
Manufacturer no.
1047314
Release date
16.6.2023

Material

Material group
Metal
Material
Metal (die-cast zinc), Plastic (PMMA)

Motion sensor properties

type of sensor
Laser
Range
0.20 m
Protection type (IP code)
IP65

Power supply

Output voltage
30 V
Power consumption
2.10 W

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

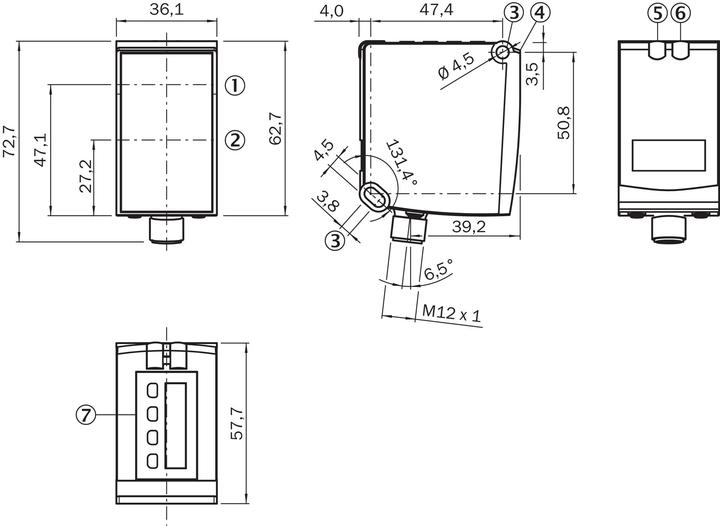

Product dimensions

Length
5.77 cm
Width
3.61 cm
Height
6.27 cm
Weight
200 g

30-day right of return
24 Months Warranty (Bring-in)
