Shuttle XPC All-In-One System POS P920 Intel® Celeron® (19.5 inch) Pixel Touchscreen DDR4-SDRAM SSD

Intel Celeron 5205U, 4 GB, 128 GB, Intel UHD Graphics
Ratings
Delivered between Thu, 21.8. and Tue, 16.9.
Supplied by

Product details

19.5” All-in-One PC for POS Applications

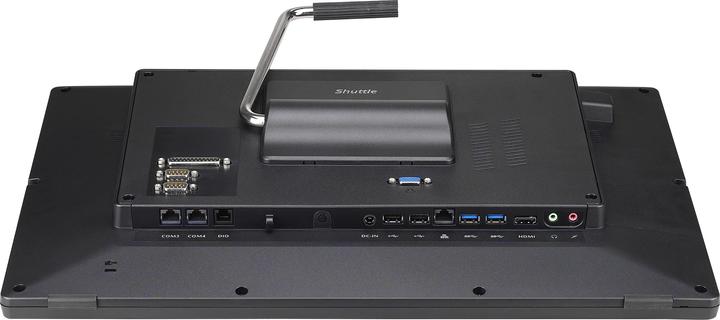

The Shuttle POS P920 is an All-in-One POS system in a 19.5-inch format featuring a capacitive touchscreen. The system is equipped with an Intel® Celeron® ULV processor, 128 GB SSD, and 4 GB RAM, making it suitable for efficiently serving customers in small to medium-sized businesses. It also provides numerous connections for typical POS peripherals, including two COM ports. Additionally, simple advertising can be displayed on two other screens via the HDMI and VGA outputs. Thanks to its completely passive cooling system, the device operates almost silently, is maintenance-free, and is suitable for 24/7 continuous operation. The arrangement of most connections on the underside of the case and the front's resistance to dust and splashes according to IP54 protection class make it particularly useful for POS applications. The POS P900 offers a high level of reliability and is a cost-effective alternative to traditional POS systems.

Key specifications

PC type
All in One PC
Processor family
Celeron
Graphics card model
Intel UHD Graphics
Video connections
HDMI (1x)
Exact USB ports
USB-A 2.0 (2x)
Network connections
RJ45 (1x)
Item number
20836879

General information

Manufacturer
Shuttle
Category
PC
Manufacturer no.
PAC-P920POS2
Release date
21.6.2022
May include power adapter
Yes

Colour

Colour
Black
Exact colour description
Black

Application range

PC type
All in One PC

Operating system

Operating system
No operating system

Processor

Number of processors
1 x
Processor family
Celeron
Processor type
Intel Celeron 5205U
Clock frequency
1.90 GHz
Max. turbo clock rate
1.90 GHz
Max. TDP
12.50 W
Number of processor cores
2 -Core
Max. Turbo Clock frequency Performance Cores
1.90 GHz
Number of threads
2
Cache
2 MB
Socket
FCBGA1528

Memory

Memory
4 GB
Memory configuration
1 x 4GB
Max. supported memory
64 GB
Memory type
DDR4-RAM
RAM speed
2400 MHz
Set clock frequency
2400 MHz
Memory form factor
SO-DIMM
Number of memory slots
2

Data storage controller

Data storage controller
Intel i211
Internal connection options
S-ATA III (1x)

Data storage overview

Disk type
SSD
Total capacity
128 GB
Form factor
M.2

SSD properties

SSD capacity
128 GB

Additional data storage

Further data carrier type
SSD
Storage capacity
128 GB

Motherboard properties

Chipset
Intel SoC

Graphics properties

Graphics hardware
Integrated graphics

Onboard graphics properties

Graphics card model
Intel UHD Graphics

Dedicated graphics card properties

Graphics chip (GPU)
Intel HD Graphics
Graphics card model
Intel UHD Graphics
Hardware interface
Ethernet, HDMI IN, Headphones, Mic input, USB 2.0, USB 3.1, VGA
Max. Video resolution
1920 x 1080 pixels

Network

Ethernet controller
Ethernet LAN
Max. port speed
1000 Mbit/s

Wireless transmission

Wireless transmission
Wi-Fi
Bluetooth version
4.2

Wi-Fi

Wi-Fi standard
Wi-Fi 5 / 802.11ac

Audio properties

Chip
High Definition Audio
Audio channel
Stereo

PC case properties

"Number of 5.25"" drive slots"
1 x
Number of 3.5" drive bays
1 x
"Number of 2.5"" drive slots"
1 x
Form factor
All-in-one

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)
Video connections
HDMI (1x)
Network connections
RJ45 (1x)
Audio Connections
Jack 3.5mm (2x), Jack 3.5mm Out (1x)
Data ports
PS/2 (2x)

Optical drive properties

Optical drive type
No drive

Card reader properties

Memory card type
SD, SDHC, SDXC

Power supply properties

Power supply
65 W

Display properties

Display size (inches)
19.50"
Image resolution
1600 x 900 pixels
Screen surface
Anti-glare
Screen technology
LCD
Display functions
Touch screen

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
4.40 cm
Width
187 cm
Height
321 cm
Weight
4.29 kg

Package dimensions

Length
55.50 cm
Width
49.80 cm
Height
15.20 cm
Weight
600 g

30-day right of return
24 Months Warranty (Bring-in)
