Shuttle XPC AIO IOT P2500PA Intel N100 29.5cm 11.6inch multi-touch display 4GB DD
120 GB, 8 GB, Intel N100Product details

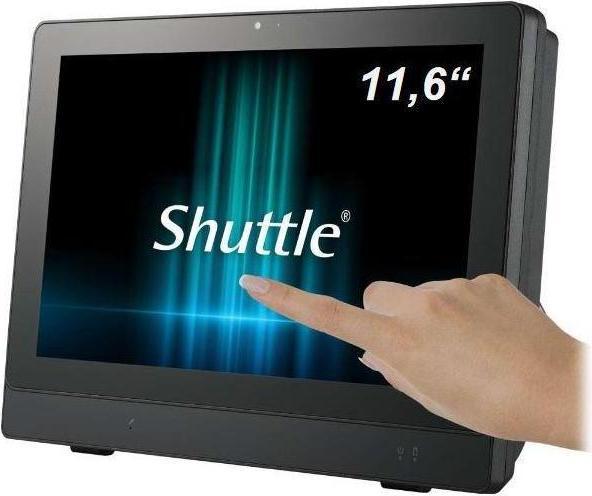

Compact All-in-One PC for POS or Control Applications

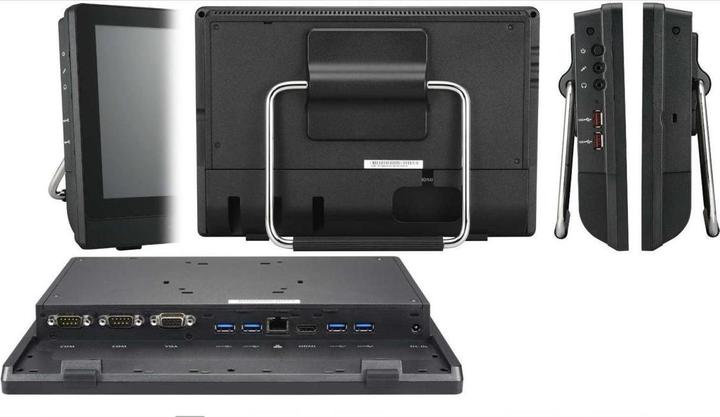

The Shuttle IoT P2500PA is a complete all-in-one system featuring a Windows 10 operating system. It comes with an 11.6" multi-touch display and can be used as a space-saving POS system or as a control unit for media playback or automation. The practical foldable stand allows for individual tilting and can also be mounted on a VESA stand or wall mount. The front is protected against dust and splashes according to IP54 protection class. A cable management box on the back keeps cables organized. Thanks to the fully passive cooling, the system operates almost silently, is maintenance-free, and suitable for 24/7 operation.
General Features
- IP54 protected front
- Dimensions: 29.9 x 20.3 x 4.05 cm (WHT)
- Suitable for 24/7 operation
- Supports 75x75 mm VESA mount
- Operating temperature: 0-40 °C
- Fanless heat pipe cooling system
Display and Graphics
- 29.5 cm (11.6") LC display, 1366 x 768 pixels, 250 Nits
- Capacitive 10-point multi-touch screen
- Integrated graphics
- HDMI 2.0b and VGA
Operating System
- Windows 10 IoT Enterprise 2021 LTSC (64-bit)
Processor
- Intel N100, Quad-Core, Clock speed: 3.4 GHz, 6 MB Cache
- Intel Generation 12 "Alder Lake-N" TDP: 6 W
Memory (not included)
- 8 GB DDR5-4800 SO-DIMM memory
- 120 GB SSD in M.2-2280 format, supports PCIe/NVMe format
- Supports a 2.5" SATA HDD/SSD, max. 9 mm height
Ports
- HDMI 2.0b
- D-Sub/VGA
- 2x USB 3.2 Gen 2 (10 Gbit/s)
- 4x USB 3.2 Gen 1 (5 Gbit/s)
- Gigabit 2.5G LAN (Intel 226LM)
- 2x RS232 COM ports
- 2x Audio (Microphone and Headphones)
- Power switch
- Power and HDD LED
- Hole with Clear CMOS button
- DC input (2.5/5.5 mm, supports 12V and 19V)
Network
- 2.5 G LAN, Intel 226LM Ethernet controller (max. 2.5 Gbit/s)
- Built-in WLAN card RTL8821CE supports WLAN 802.11ac (WiFi 5) and BT 4.2 with 2 internal...
Network connections | RJ45 (1x) |
PC type | All in One PC |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (1x) |
Item number | 54176475 |
PC type | All in One PC |
Operating system | Windows |
Number of processors | 1 x |
Processor type | Intel N100 |
Clock frequency | 3.40 GHz |
Max. turbo clock rate | 3.40 GHz |
Max. TDP | 6 W |
Number of processor cores | 4 -Core |
Clock frequency performance cores | 3.40 GHz |
Clock frequency Efficiency cores | 3.40 GHz |
Processor cooling type | Air cooled |
Memory | 8 GB |
Max. supported memory | 8 GB |
Set clock frequency | 3400 MHz |
Memory form factor | SO-DIMM |
Disk type | SSD |
Total capacity | 120 GB |
Form factor | M.2 2280 |
SSD capacity | 120 GB |
Further data carrier type | SSD |
Storage capacity | 120 GB |
Max. Video resolution | 1366 x 768 pixels |
Ethernet controller | Intel |
Max. port speed | 2500 Mbit/s |
Wireless transmission | Wi-Fi |
Form factor | All-in-one |
USB ports | USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (1x) |
Network connections | RJ45 (1x) |
Data ports | RS232C in (2x) |
Image resolution | 1366 x 768 pixels |
CO₂-Emission | |
Climate contribution |
Length | 29.50 cm |
Width | 20.30 cm |
Height | 4.05 cm |
