Sg Sensor DIM Box

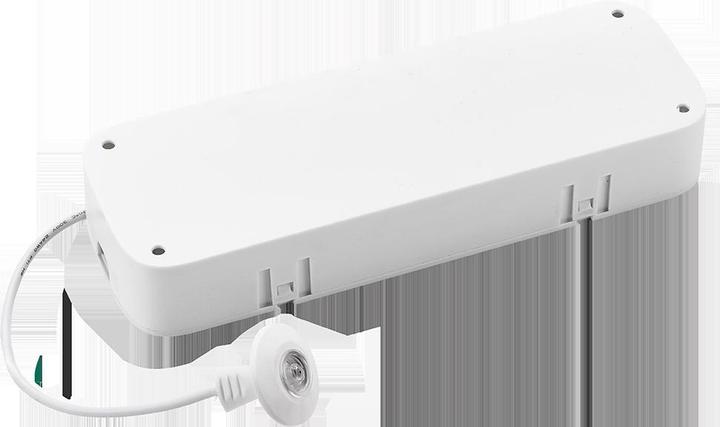

The Sensor Dim-Box enables energy-efficient control of lights that do not have the option of a built-in sensor. The Sensor Dim-Box is equipped with an external IR eye for the daylight function and HF for motion detection. It can be mounted in the ceiling and fits into cutouts with a diameter of 83 mm. The box should be mounted upside down for the motion sensor to function correctly, which is clearly marked on the box. It is suitable for use in hallways, classrooms, and other areas where sensor-controlled lighting is required. The maximum load per sensor is 200 VA, but 6 units can be connected via the COM terminal on the sensor. All units will then work together synchronously.
