Schneider Essential Edge Box, Harmony BX1, Linux, 24V DC HMIBX1A0NDA

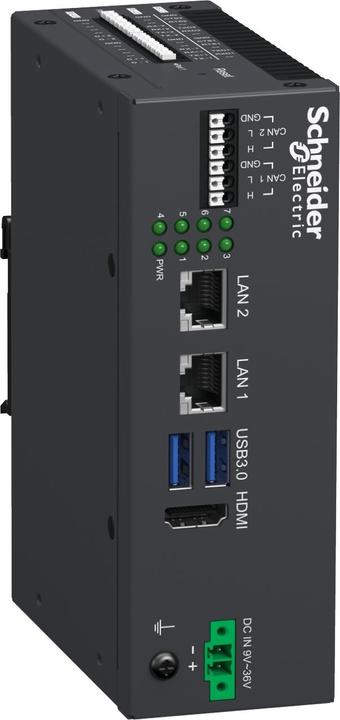

This box PC belongs to the Harmony BX1 series from Schneider Electric. It is equipped with a Linux operating system and offers the ability to control applications with the pre-installed EcoStruxure Automation Expert (EAE) (v23.0) softdPAC. The processor is an ARM NXP i.MX8M Plus Quad-Core Cortex-A53 running at 1.6 GHz, and it comes with DDR4L 4 GB RAM and 32 GB eMMC storage. The fanless box PC features 2 Ethernet ports, 2 configurable COM (RS232/422/458), and 2+F2+G2. This product operates with a power consumption of 24 W and a nominal voltage of 9 V to 36 V DC. Its dimensions are 98 mm (width) x 140 mm (height) x 48 mm (depth) with a weight of 0.950 kg. The device is designed for industries such as CPG, logistics and warehousing, WWW, and MMM. The box complies with standards EN55011, IEC (61000-6-1, 61000-6-2, 61000-6-4, 61131-2), FCC Part 15, UL 61010-2-201, CSA C22.2 No. 61010-2-201, as well as certifications UKCA, CE, RCM, and cULus 61010. The protection class is IP20. It is intended for mounting on a DIN rail. The smart design and engineering of the Harmony BX1 reduces implementation time for automation engineers and is more cost-effective throughout its entire lifecycle. In conjunction with EcoStruxure Automation Expert (EAE), the Harmony BX1 simplifies the development of complete automation architectures and solutions.
