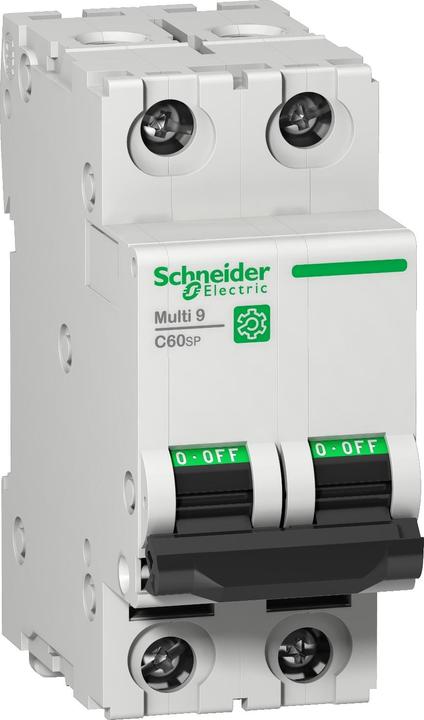

Schneider Electric SE M9F22220 Multi 9 OEM circuit-breaker C60SP 2-pole 20A C-Char. 10kA 480Y/277V UL1

Ratings
BrandMore from Schneider Electric
Delivered between Tue, 11.8. and Tue, 25.8.
6 items ordered
Free shipping starting at 50.–

Product details

C60BP Multi 9 OEM circuit breaker, 10 kA. 3-pole, rated current 3A, C-characteristic, operating voltage (Ue) 240V AC IEC/EN 60947-2 / 277V AC UL 489, insulation voltage (Ui) 500V AC. Simple terminal connection for cables and pin busbar on the top and bottom of the device. Mounting via standard clip closure on DIN rail. Snap action for low-wear switching of contacts. Additional snap-on auxiliary modules (optional) - indication of switching position (OF), fault trip (SD), working current trip (MX, MX+OF), undervoltage trip (MN, MNs, MNx). Tool-free mounting on the left side of the device. The C60SP complies with the following standards - IEC/EN 60947-2, UL 489 / CSA C22.2 No.5 / GB 14048-2. C60SP circuit breakers are multi-standard circuit breakers that can be used worldwide, as they meet all international and also all important national standards.

Key specifications

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
number of poles
2

General information

Item number
32098164
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer No.
M9F22220
Release date
16.11.2022

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
Mounting type
Top-hat rail
Mounting type
Screw fastening
number of poles
2
Tripping characteristic
C/10 ka
Rated current
20 A
Rated voltage
277 V
voltage type
AC
Insulation voltage (Ui)
500 V
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

30-day right of return
24 Months Warranty (Bring-in)
