Schneider Electric SCHN FI/LS switch

Ratings
Currently out of stock
Free shipping starting at 50.–

Product details

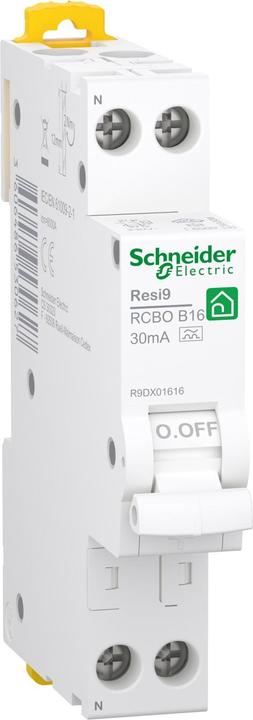

The Schneider Electric FI/LS switch Resi9 is a reliable and safe device that functions both as a residual current circuit breaker (RCCB) and a miniature circuit breaker (MCB). With a rated current of 16A and a B characteristic, this switch provides effective protection against overload and short circuits. The rated residual current is 30 mA, making it ideal for use in residential and commercial buildings. The switch is designed for an operating voltage of 230V AC and a frequency of 50 Hz. Its compact design, with a width of only 18 mm, allows for easy mounting on a DIN rail. Additionally, the switch features mechanical indicators that are visible in the event of a fault trip for both the circuit protection and the residual current protection, enhancing the safety and user-friendliness of the device.

  • Integrated residual current and circuit protection
  • Mechanical indicators for fault trips
  • Operating voltage of 230V AC
  • Rated residual current of 30 mA, Type A
  • Rated breaking capacity of 6kA.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
11 mm
Width
10 mm
number of poles
2
Item number
44962569

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9DX01616
Release date
16.4.2024

Colour

Colour
Grey
Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
number of poles
2
Tripping characteristic
B
Rated current
16 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
400 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 Piece

Product dimensions

Length
11 mm
Width
10 mm
Height
5 mm
