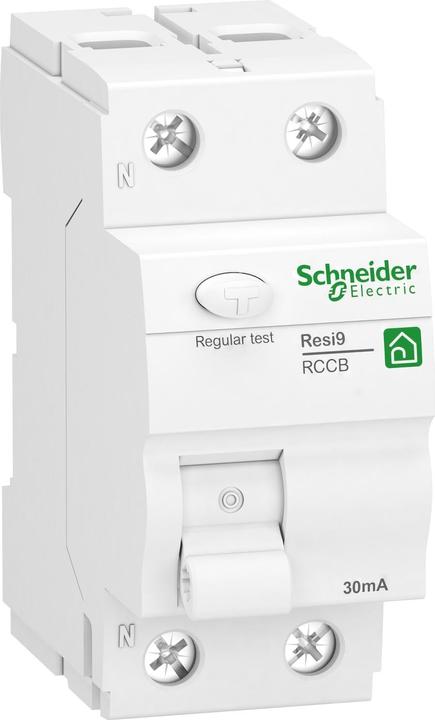

Schneider Electric R9R42225 Resi9 1P+N 25A 30mA Type F Residual current circuit breaker

Ratings
Delivered between Thu, 2.10. and Sat, 18.10.
free shipping

Product details

The R9R42225 Resi9 residual current circuit breaker from Schneider Electric is a highly advanced safety device designed for use in electrical installations. With a rated current of 25A and a rated residual current of 30mA of type F, this circuit breaker provides reliable protection against electrical faults. It complies with the EN 61008 standard and is designed for an operating voltage of 230V AC at a frequency of 50 Hz. The switch is suitable for mounting on a DIN rail and features a double connection terminal that can be used for both cables and fork busbars. The design allows for easy installation and maintenance, while the rear DIN rail mounting ensures additional stability. The R9R42225 is designed to ensure a long service life and offers a spring mechanism that enables low-wear and user-independent switching of the contacts.

  • Conditional rated short-circuit current of 10,000A
  • Neutral position on the left for easy handling
  • Spring mechanism for low-wear switching
  • Dual-function terminal for flexible connection options
  • Protection class IP20 for indoor use.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
2 mm
mounting style
Top-hat rail
number of poles
2
Item number
31988881

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9R42225
Release date
24.10.2022

Colour

Exact colour description
RAL9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
2
Rated current
25 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
2 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
