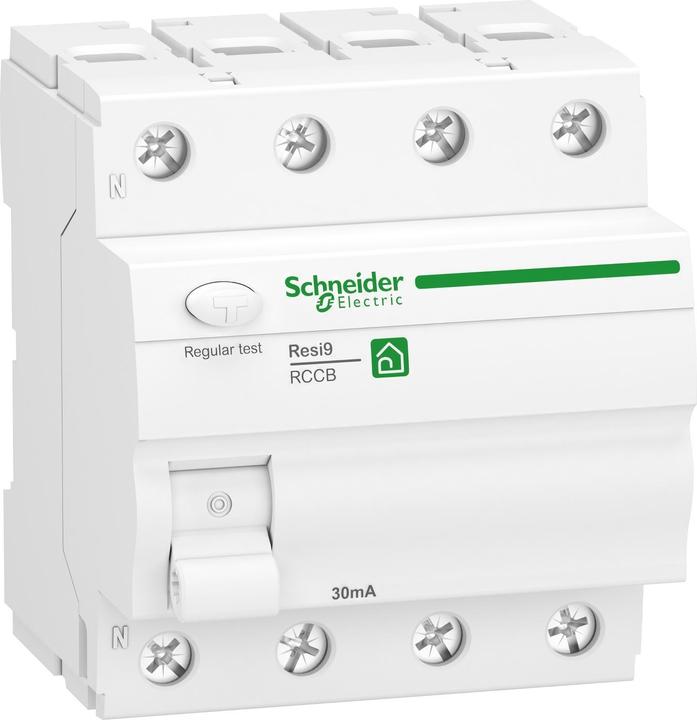

Schneider Electric R9R22463 Resi9 3P+N 63A 30mA Type A Residual Current Circuit Breaker

Ratings
BrandMore from Schneider Electric
Delivered between Fri, 10.4. and Wed, 15.4.
8 pieces in stock at supplier
free shipping

Product details

The R9R22463 Resi9 residual current circuit breaker from Schneider Electric is a highly advanced safety device designed for use in electrical installations. With a rated current of 63A and a rated residual current of 30mA, this circuit breaker provides reliable protection against hazardous residual currents. It is three-pole plus neutral (3P+N) and meets the requirements of the EN 61008 standard. The circuit breaker is designed for an operating voltage of 400V AC and an operating frequency of 50 Hz. The dual-function terminal at the bottom allows for easy and flexible installation, while the rear-mounted DIN rail mounting element ensures secure installation. The spring mechanism enables low-wear and user-independent switching of the contacts, which increases the longevity of the device. With an IP20 protection rating, the switch is suitable for use in dry indoor environments.

  • Conditional rated short-circuit current of 10,000A
  • Dual-function terminal for cables and forked busbars
  • Spring mechanism for low-wear switching
  • Neutral position on the left for easy installation
  • IP20 protection rating for use in dry indoor environments.

Key specifications

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
4
Length
78.50 mm
Width
72 mm

General information

Item number
22831024
Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
R9R22463
Release date
24.10.2022
Sales rank in Category Residual-current device
33 of 18578
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
White

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
Mounting type
Engagement
number of poles
4
Tripping characteristic
A
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
17.82 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
78.50 mm
Width
72 mm
Height
81 mm
Weight
340 g

Package dimensions

Length
9.30 cm
Width
7.70 cm
Height
8.70 cm
Weight
380 g
