Schneider Electric MTN683890

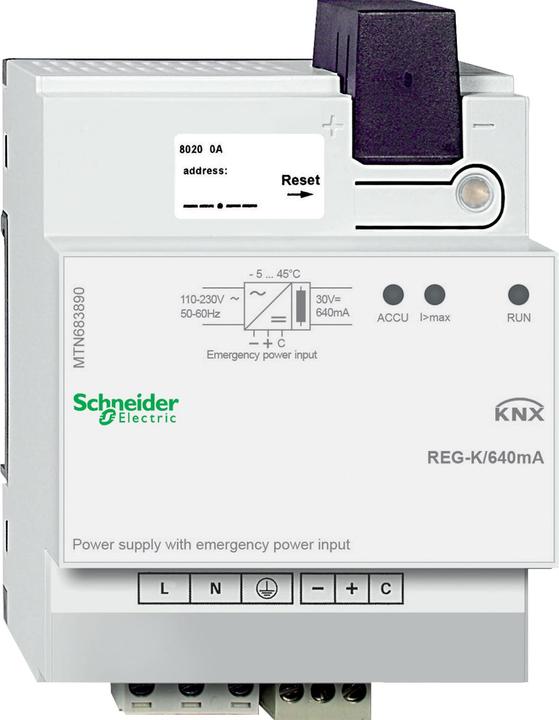

Schneider Electric KNX Power Supply MTN683890

Manufacturer: Schneider Electric
Designation: KNX Power Supply REG-K/640 mA
Type: MTN683890
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Modular Units: 4
With LED Display: yes
Bus Voltage Bufferable: yes
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 640 mA
Secondary Voltage: 30 V

The Schneider Electric KNX Power Supply MTN683890 generates the bus voltage for a line with a maximum of 64 bus participants. An emergency power supply REG can be connected to buffer the bus voltage. It features an integrated choke to decouple the power supply from the bus, as well as a button for interrupting the voltage and resetting the bus participants connected to the line.

Designed for mounting on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal; a data rail is not required. Mains Voltage: AC 110 - 230 V, 50-60 Hz; Output Voltage: DC 30 V; Output Current: maximum 640 mA, short-circuit proof. Device Width: 4 TE, approximately 72 mm. Delivery includes: with bus connection terminal and cable cover.
