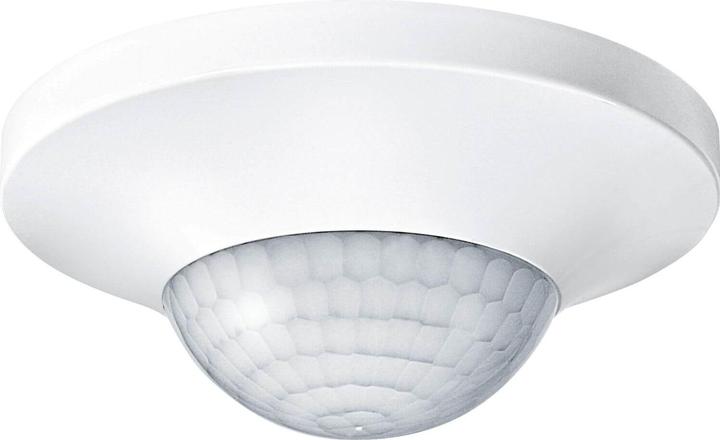

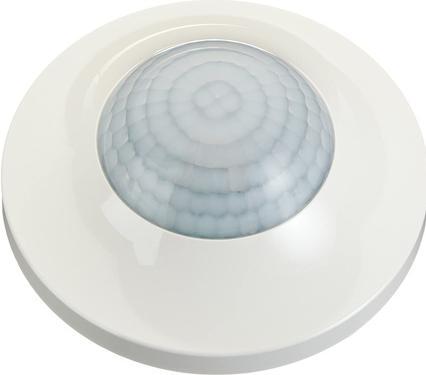

Schneider Electric Motion detector 630819 KNX ARGUS PRESENCE

Merten Presence Detector PWS 630819

Manufacturer: Merten
Description: Presence Detector PWS KNX ARGUS
Type: 630819
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Design: Presence Detector
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: other
Surface Protection: untreated
Surface Finish: matte
Color: white
RAL Number (similar): 9010
Transparent: no
With Bus Coupling: yes
Subordinate Input: no
Creeping Protection/Return Field Monitoring: yes
Operating Mode Switch: no
Animal Path: no
Staircase Monitoring: yes
Adjustable Response Brightness: yes
Teach Function for Response Brightness: no
Self-learning Switch-off Delay: no
Optimal Mounting Height: 2.5 m
Max. Range to One Side: 7 m
Max. Frontal Range: 7 m
Detection Field Diameter on Floor: 14 m
Horizontal Detection Angle: 0..360 °
Number of Channels: 5
Min. Switch-on Duration: 1 s
Max. Switch-on Duration: 15300 min
Min. Depth of Device Box: 46 mm

The Merten Presence Detector PWS 630819 is available in polar white with a time delay of 0...1 s. The suitable mounting box can be flush-mounted into the wall surface. Its protection class includes creeping zone protection, ensuring your safety. Made of plastic, this presence detector is very reliable and durable. The switch-on duration of this device is 15300 minutes. With a maximum detection range of 14 m, it detects movements. Additionally, it is halogen-free, which is good for your health, and it is free from mercury and heavy metals, which is environmentally friendly. KNX integrates all important building functions such as lighting, heating, air conditioning, or shading into an intelligent system, leading to significant energy savings and reduced installation time.
