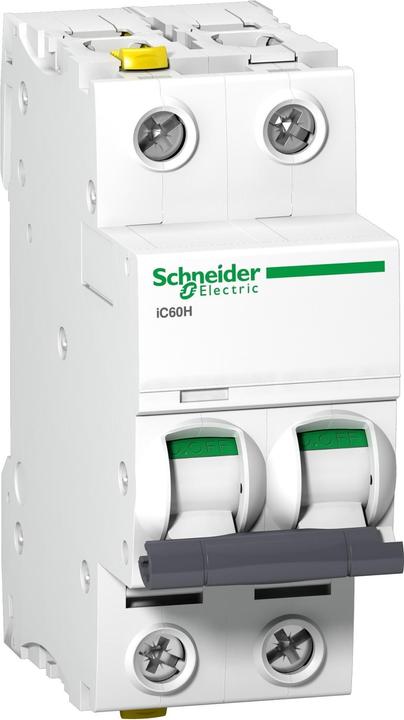

Schneider Electric LSSwitch iC60H 2p

Acti 9 iC60H circuit breaker, 10kA (IEC/EN 60898-1), 15kA (IEC/EN 60947-2). 2-pole, rated current 13A, C-characteristic, operating voltage (Ue) 380-415V AC, insulation voltage (Ui) 500V AC. Double connection terminal for cables and pin busbar on the top and bottom of the device. Jump switching for low-wear contact operation. Integrated insulation cover. Activation of the DIN rail mounting element on the front side of the device for tool-free installation and easy accessibility for the user. Equipped with a mechanical front-side fault indication (VisiTrip) to show tripping due to overload or short circuit. Safe contact indication (VisiSafe) of the circuit breaker, with green indication ensuring voltage-free safety on the outgoing side. Tripping unit technology - thermomagnetic. Compatible with the residual current devices of the Acti 9 iID series as well as the Vigi iC60 residual current block. Additional snap-on auxiliary modules (optional) - indication of switching position, fault tripping, operational current tripping, undervoltage tripping, overvoltage tripping. Color shade RAL 9003. The iC60H circuit breaker complies with the following standards - IEC/EN 60898-1 and IEC/EN 60947-2. Furthermore, this series is VDE certified.
